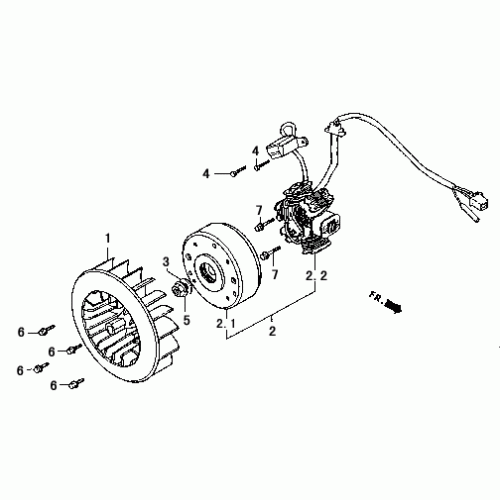

Generator (Dazon Raider 150 2006 and Earlier)

Change Assembly

Generator (Dazon Raider 150 2006 and Earlier)
# Product Code: Product Name Req'd Price:
1 19510-SAA0-0000 Fan Comp., Cooling $12.47
2 31100-SAA0-0000 Generator Assy., Flywheel Type.A.C $109.15
2.1 31110-SAA0-0000 Flywheel Comp. $46.78
2.2 31120-SAA0-0000 Stator Comp. $61.33
3 94110-12E01-0B Washer,Flat $0.29
4 93210-05012-0B Bolt, Hex 5x12 $0.46
5 94050-12E01-0B Nut, Flange 12mm $0.58
6 96010-06018-0B Bolt, Flange 6x18 $0.69
7 96010-06020-0B Bolt, Flange 6x20 $0.58
Showing 1 to 9 of 9 (1 Pages)
