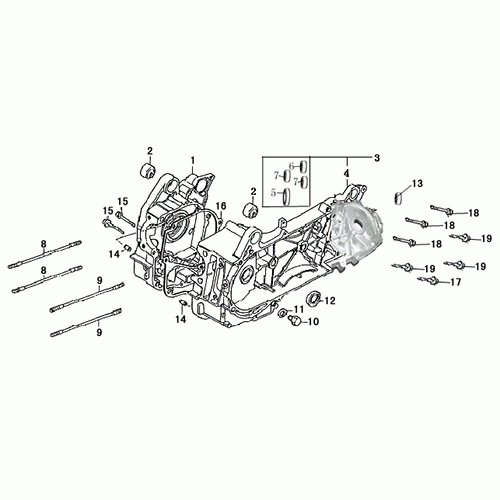

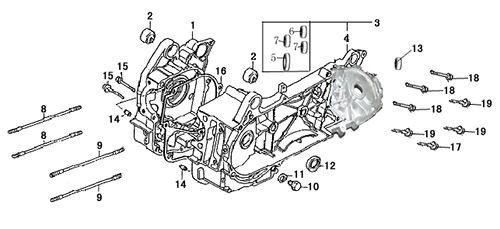

Crankcase (Dazon Raider 150 2006 and Earlier)

Change Assembly

Crankcase (Dazon Raider 150 2006 and Earlier)
# Product Code: Product Name Req'd Price:
1 11100-SCA3-0000 Crankcase Assy., R. $206.86
2 11102-SBA0-0000 Bush, Engine Hanger Rubber $2.75
3 1120A-SDB0-0000 Crankcase Assy., L. $206.86
4 11200-SDB0-0000 Crankcase Assy., L. $206.86
5 96100-62030 Radial Ball Bearing, 6203 $8.66
6 96100-62020 Radial Ball Bearing, 6202 $8.66
7 96100-62040-T000 Bearing 6204 $10.99
8 90033-SAA0-0000-0B Bolt, 2 Stud 8x198 $3.58
9 90034-SAA0-0000-0B Bolt, 2 Stud 8x208 $3.81
10 90035-SAA0-0000 Bolt, Drain Plug 12x12 $1.16
11 94110-12E01-AL Washer $0.29
12 91203-SBA0-0000 Oil Seal 19.8x30x5 $8.78
13 91201-SAA0-0000 Oil Seal 20x32x6 $3.47
14 94310-08140 Pin, Dowel $0.40
15 96010-06050-0B Bolt, Flange 6x50 $0.87
16 11192-SAA0-E000 Gasket, Crankcase $5.78
17 96010-06045-0B Bolt, Flange M6x45 $0.87
18 96010-06070-0B Bolt, Flange M6x70 $0.87
19 96010-06060-0B Bolt, Flange M6x60 $0.87
Showing 1 to 19 of 19 (1 Pages)
