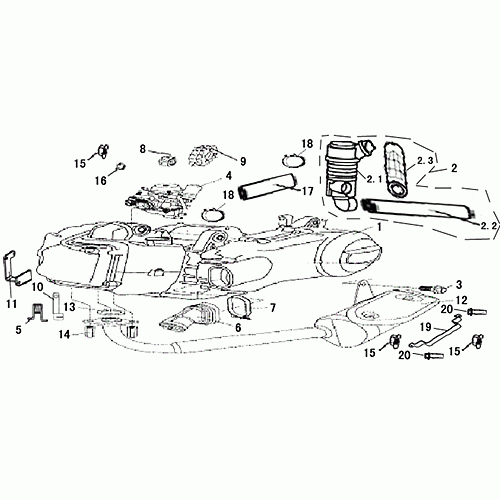

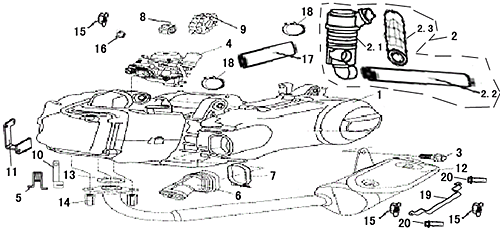

Air Cleaner/Muffler (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
engine assy
0005Z-SDB0-0010
|
|||
| 2.1 |
Air Cleaner Assy.
17201-SCA4-0000
|
|||
| 2.2 |
Tube D, Air Cleaner
17207-SCA4-0000
|
|||
| 2.3 |
Go-Cart Air Cleaner Element
17211-SCA4-0000
|
|||
| 3 |
Bolt, Flange
95710-08040-0B
|
$0.84 | ||
| 4-3 |
150cc Carburetor Assy
1610A-SCE0-0001
|
$124.92 | ||
| 4-1 |
150cc Carburetor Assy
1610A-SCA0-0001
|
$124.92 | ||
| 4-2 |
150cc Carburetor Assy
1610A-SCA4-0001
|
$124.92 | ||
| 5 |
return spring, gearshift arm
53152-BCB2-0010
|
|||
| 6 |
Boot, Side Case
1134A-TAA0-0000
|
|||
| 7 |
Clamp,Side Case Boot
90652-TAA0-0000
|
|||
| 8 |
Lock Nut,Flange M16x1.5
90210-16B01-1B
|
$2.51 | ||
| 9 |
sprocket, drive
23801-BCA0-0022
|
$64.53 | ||
| 10 |
arm, gearshift
53150-BCB2-0010
|
|||
| 11 |
mounting plate, gearshift arm
53151-BCB2-0020
|
$22.71 | ||
| 12-1 |
Muffler Assy.
1830A-SCA4-0000
|
|||
| 12-2 |
muffler comp.,ex
1830A-SCA4-0010
|
|||
| 13 |
gasket,ex.pipe
18291-TBA0-E000
|
$2.79 | ||
| 14 |
Bolt, Muffler
90301-TCB0-0000-0C
|
|||
| 15 |
Lock Nut,Flange
90210-06B01-0C
|
$0.70 |
