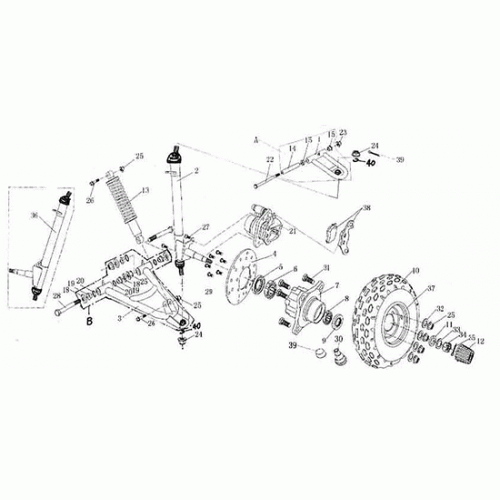

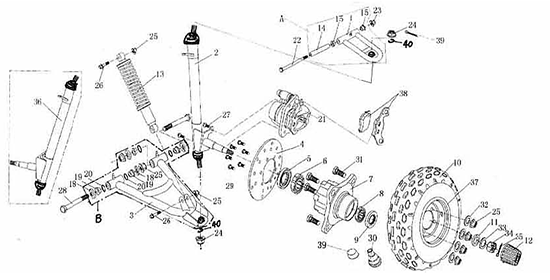

Suspension (Dazon Raider 150 2005 and Older)

Change Assembly

Suspension (Dazon Raider 150 2005 and Older)
# Product Code: Product Name Req'd Price:
A 5110A-BCB0-0010 Suspension Arm Assy., Upper
B 5120A-BCB0-0010 Suspension Arm Subassy., Lower
1 51100-BCB0-0000 Suspension Arm Comp.., Upper $20.79 $15.59
2 51500-BCA0-0010 Strut, Front Left
4 45120-BCA0-0000 Brake Disc, Front $33.26 $24.95
5 91201-BCA0-0000 Seal, Dust 25x47-7 $2.31 $1.73
6 96100-62040 Radial Ball Bearing, 6204C3 $13.86 $12.47
7 4460A-BCA0-0000 Hub,Front Wheel $50.94 $38.20
8 96100-62030 Radial Ball Bearing, 6203 $8.66
9 91202-BCA0-0000 Seal, Oil $2.19 $1.65
10 44710-BDA0-0000 Tire, Front $71.73 $53.79
11 44301-BCA0-0000-0C Spacer, Front Wheel Hub $2.19 $1.65
12.1 44691-BCA0-0000 Cap, Rear Wheel $4.62 $3.47
12.2 44691-BCA0-0001 Cap, Rear Wheel Axle $3.75 $2.82
13.1 51400-BCA0-0000 Shock Absorber Assy., Front $51.98 $38.98
13.2 51400-BCA0-0001 Shock Absorber Assy., Front $51.98 $38.98
14 51109-BCA0-0000 Spacer, Center $4.62 $3.47
15 51108-BCA0-0000 Bush, Lower Suspension Arm $2.31 $1.73
18 51209-BCA0-0000 Cap, Dust $5.78 $4.33
19 51208-BCA0-0000 Bush, Lower Suspension Arm $4.62 $3.47
Showing 1 to 20 of 42 (3 Pages)
