Seat/Carrier/Fuel Tank (Dazon Raider 150 2005 and Older)

Change Assembly

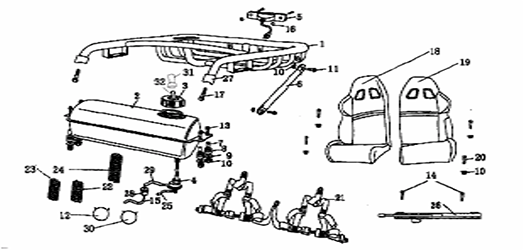

Seat/Carrier/Fuel Tank (Dazon Raider 150 2005 and Older)
# Product Code: Product Name Req'd Price:
1.1 82101-BCA1-0010 Carrier Comp., Rear $102.91
1.2 82101-BCA1-0000 Carrier Comp., Rear $92.52
2 17510-BCC0-0000 Fuel Tank Comp.
3 17620-BCC0-0002 Cap, Fuel Tank Comp. $17.67
4 16950-TBA0-0000 Petcock, Fuel Tank Comp. $15.59
5 33701-BCC0-0000 Taillamp
6 82102-BCD1-0000 Brace, Rear Carrier Support $16.63
7 17519-BCA0-0000-0C Inner Collar, Fuel Tank $0.69
8 17518-BCA0-0000 Rubber Spacer, Fuel Tank $0.69
9 94110-08B01-0C Washer, Flat $0.23
10 90210-08B01-1B Lock Nut,Flange $1.73
11 95710-08025-0C Bolt, Flange $0.87
12 95002-TCB0-0000 Circlip, Air Tube $0.17
13 95710-08030-0C Bolt, Flange $0.87
14 95710-08016-1B Bolt, Flange $0.87
15 17684-BCA0-0000 Tube, Air $5.99
16 90210-05B01-0C Lock Nut, Flange $0.58
17 95710-08058-1B Bolt, Flange $1.44
18 77210-BCD0 Seat Assy.,Left Red&Black/Black
19 77215-BCD0 Seat Assy.,Left Red&Black/Black
Showing 1 to 20 of 33 (2 Pages)
