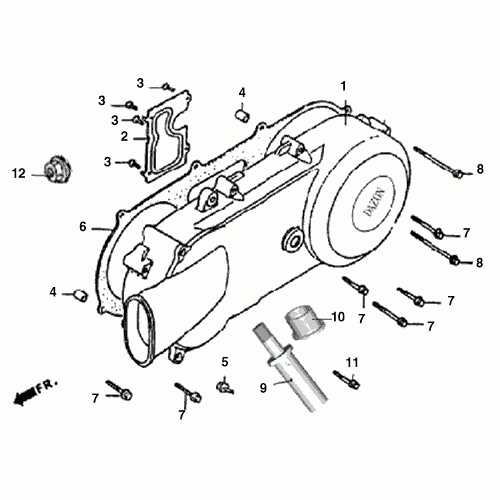

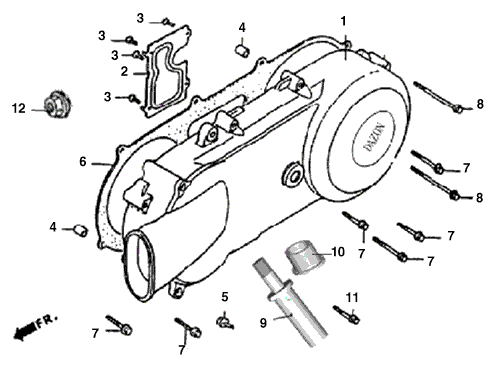

Left Crankcase Cover (Dazon Raider 150 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover, L.
11341-SAA0-0000
|
|||
| 2 |
Plate, L. Cover
11342-SAA0-0000
|
|||
| 3 |
Screw, Tapping 4x8
93920-40080-0B
|
|||
| 4 |
Pin, Dowel
94310-08140
|
$0.49 | ||
| 5 |
Bolt, Flange
96010-06012-0B
|
|||
| 6 |
Gasket, Left Crankcase Cover
11395-SAA0-0000
|
$12.43 | ||
| 7 |
Bolt, Flange 6x40
96010-06040-0B
|
$1.05 | ||
| 8 |
Bolt, Flange (Convex) M6x65
96010-06065-0B
|
$1.07 | ||
| 9 |
Connecting Bush, Muffler
18400-SCA4-0000
|
$20.08 | ||
| 10 |
Sleeve, Support
18410-SCA4-0000
|
$6.97 | ||
| 11 |
Bolt, Flange
95710-08040-0B
|
$0.84 | ||
| 12 |
Nut, Flange M14*1.5
90200-14E02-0C
|
$2.12 |
