Crankcase (Dazon Raider 150 2005 and Older)

Change Assembly

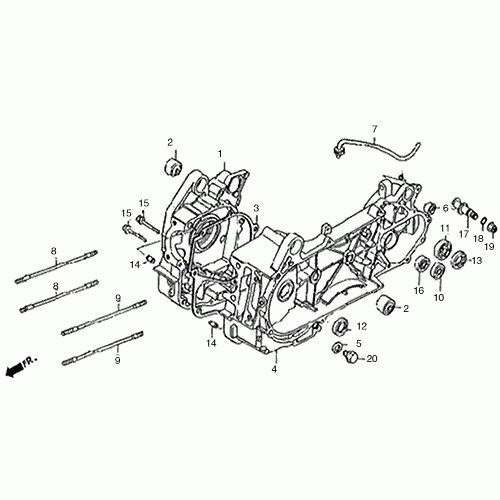

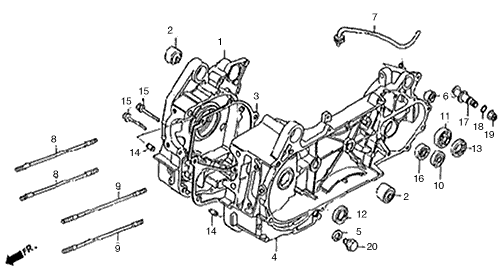

Crankcase (Dazon Raider 150 2005 and Older)
# Product Code: Product Name Req'd Price:
1 11100-SCA3-0000 Crankcase Assy., R. $206.86
2 11102-SBA0-0000 Bush, Engine Hanger Rubber $2.75
3 11192-SAA0-0000 Gasket, Left/ Right Crankcase $5.78
4 11200-SCA0-0000 Crankcase Assy., Left $206.86
5 94110-12E01-AL Washer $0.29
6 11203-SBA0-0000 Bush, Rear Shock Absorber 8.2x20x19 $4.62
7 11221-SAA0-0000 Breather Tube, Gearbox
8 90033-SAA0-0000-0B Bolt, 2 Stud 8x198 $3.58
9 90034-SAA0-0000-0B Bolt, 2 Stud 8x208 $3.81
10 96100-63010 Bearing $10.40
11 96100-60040-LLU Bearing 6004LLU $10.40
12 91203-SBA0-0000 Oil Seal 19.8x30x5 $8.78
13 91204-SBA0-0000 Oil Seal 27x42x7 $4.04
14 94310-08140 Pin, Dowel $0.40
15 96010-06050 Bolt, Flange M6*50
16 96100-60020 Radial Ball Bearing, 6002 $11.55
17 11204-SCA0-0000 Dowel Pin ,Brake Drum
18 91304-SBA0-0000 O-ring $0.58
19 90210-08E01-0B Lock Nut, Flange $1.04
20 90035-SAA0-0000 Bolt, Drain Plug 12x12 $1.16
Showing 1 to 20 of 20 (1 Pages)
