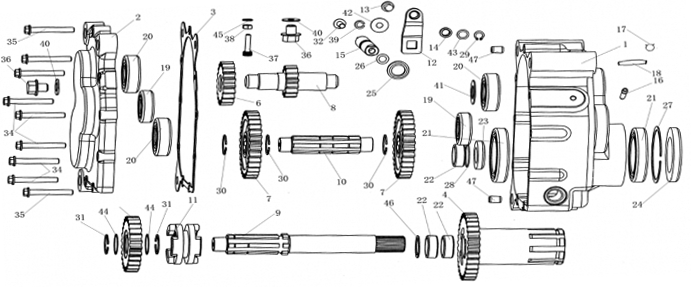

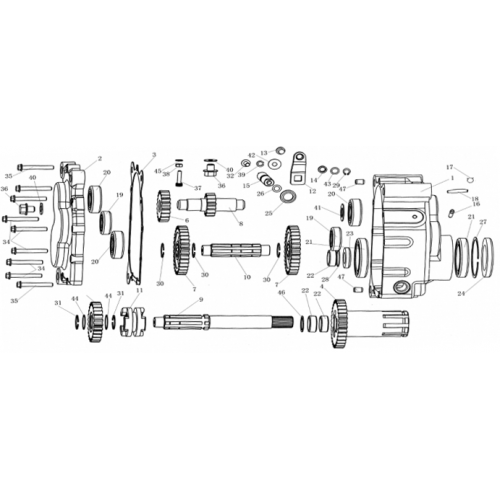

Transmission (Dazon Buggy 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Case, Gear
25100-BCC0-0001
|
|||
| 2 |
Cover, Gear Case
25200-BCC0-0001
|
|||
| 3 |
Gasket
25191-BCC0-0001
|
|||
| 4 |
Gear, Output
25301-BCC0-0000
|
$43.31 | ||
| 5 |
Drive Gar, Primary
25302-BCC0-0000
|
$84.66 | ||
| 6 |
Gear,Center
25303-BCC0-0000
|
|||
| 7 |
Gear,Input
25304-BCC0-0000
|
|||
| 8 |
Shaft, Center
25305-BCC0-0000
|
$104.43 | ||
| 9 |
Dazon Go Kart Input Shaft
25401-BCC0-0000
|
|||
| 10 |
Shaft I
25402-BCC0-0000
|
|||
| 11 |
Hub, Spline
25403-BCC0-0000
|
|||
| 12 |
York, Gear Shifting
25501-BCC0-0000
|
|||
| 13 |
Pin ,Gear Shifting
25502-BCC0-0000
|
|||
| 14 |
Sleeve, Gear Shifting Pin
25503-BCC0-0000
|
|||
| 15 |
Shaft, Gear Shifting York
25504-BCC0-0000
|
$31.38 | ||
| 16 |
Intake, Air
11335-SCC0-0000
|
|||
| 17 |
Pipe, Breather
11211-SAA0-0000
|
|||
| 18 |
Clip (1) ,Pipe
11212-SAA0-0000
|
|||
| 19 |
Radial Ball Bearing, 6203
96100-62030
|
$10.46 | ||
| 20 |
Bearing
96100-63030-0100
|
