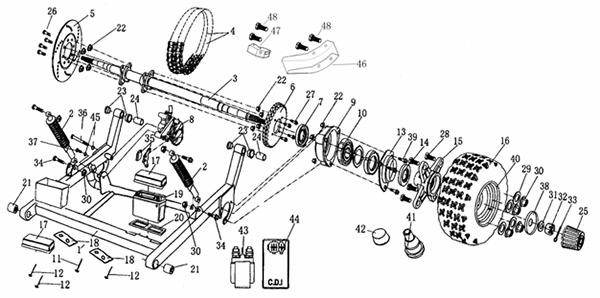

Rear Wheel Assy (Dazon Buggy 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Swing Arm Comp.
5212A-BCC1-0000
|
|||
| 2 |
Shock Absorber
52400-BCA0-0000
|
|||
| 3 |
Axle Comp., Rr.
41000-BCA0-0000
|
|||
| 4 |
Drive Chain 10A
40530-BCA0-0000
|
|||
| 5 |
Brake Disc Comp.,Rear
43120-BCA0-0000
|
$65.71 | ||
| 6 |
Sprocket, Rear Axle
41200-BCA0-0000
|
$30.00 | ||
| 7 |
Seal, Dust 34x50-7
91203-BCA0-0000
|
$4.88 | ||
| 8 |
Rear Brake Fluid Pump Assembly
43200-BCA0-0000
|
|||
| 9 |
Housing Comp., Rear Axle Bridge
42701-BCA0-0000
|
|||
| 10 |
Bearing 6206 RZ
96100-62060-RZ
|
|||
| 11 |
Long Drawbar, Battery
50322-BCC0-0000
|
|||
| 12 |
Short Drawbar, Battery
50323-BCC0-0000
|
|||
| 13 |
Cover, Rear Axle Bridge Housing
42702-BCA0-0000
|
$10.46 | ||
| 14 |
Seal,Dust 28x42-7.3
91204-BCA0-0000
|
|||
| 15 |
Wheel Hub, Rr.
4260A-BCA0-0000
|
$52.83 | ||
| 16 |
Rear Tire 22x11-10
42710-BCA0-0000
|
|||
| 17 |
Cover, Battery
50320-BCA0-0000
|
|||
| 18 |
Pressure Plate, Battery
50321-BCC0-0000
|
|||
| 19 |
Battery
31500-BCA0-0000
|
$49.90 | ||
| 20 |
Cushion, Battery
50328-BCA0-0000
|
$2.09 |
