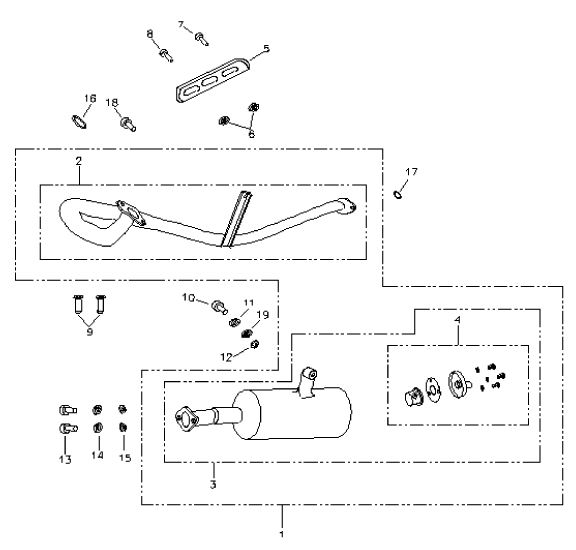

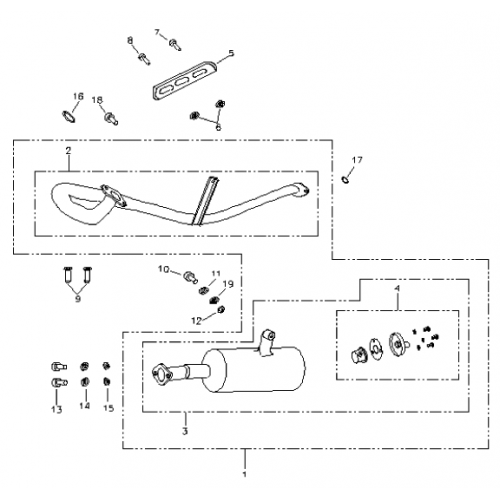

Exhaust (Bombardier Mini DS 90 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Muffler
A18300238000
|
$151.53 | ||
| 2 |
Exhaust Pipe Front
A18311238000
|
|||
| 3 |
Muffler + Spark Arr
A1832117500A
|
|||
| 4 |
Spark Arrester
A18330152000
|
|||
| 5 |
Protective Cover
A18319152000
|
|||
| 6 |
Muffler Shroud Packing
A18292104000
|
$0.67 | ||
| 7 |
Hexagonal Washer Face Bolt
A960000603008L
|
|||
| 8 |
Hexagonal Washer Face Bolt
A960000602008L
|
|||
| 9 |
Cap Nut
A9030106000
|
|||
| 10 |
Hexagonal Washer Face Bolt
A960000803512G
|
$2.01 | ||
| 11 |
Washer Plain
A941010814020G
|
$0.70 | ||
| 12 |
Nylon Insert Lock Nut M8
A9035008000
|
|||
| 13 |
Hexagonal Washer Face Bolt
A960000602210G
|
$0.84 | ||
| 14 |
Washer Plain
A941010614020G
|
$0.70 | ||
| 15 |
Hex.Flange Nut With Serration
A9405006000G
|
$0.70 | ||
| 16 |
Gasket-Pipe
A18291133000
|
$3.63 | ||
| 17 |
Exhaust Pipe Gasket
A18291101000
|
|||
| 18 |
Hex Flanged Screw M8X25
207682544
|
|||
| 19 |
Spring Washer
A941110814520
|
$0.50 |
