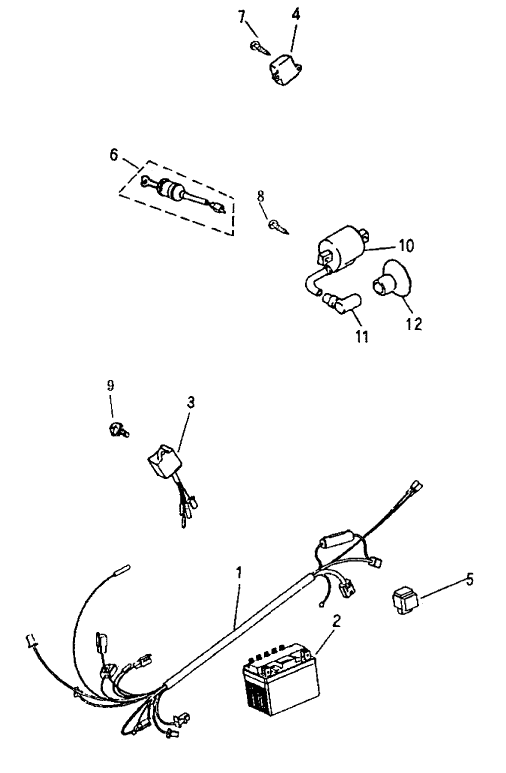

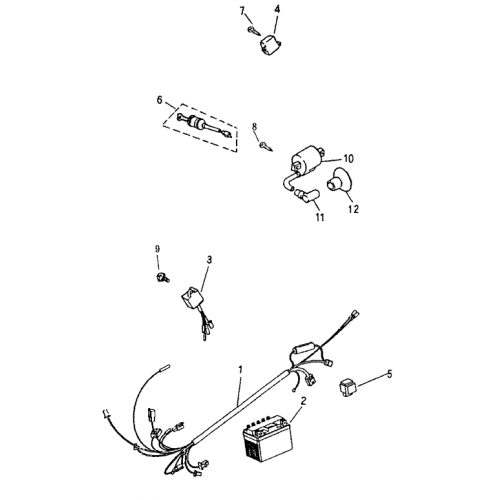

Electrical Components (Bombardier Mini DS 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Main Wire Harness
A32100166001
|
|||
| 2 |
Battery BTX4L-BS
A31500116000
|
$36.99 | ||
| 3 |
C.D.I Unit (5900Rpm)
A30410117001
|
$76.92 | ||
| 4 |
Regulator Rectifier
A31600110000
|
$44.76 | ||
| 5 |
Starting Relay
A38501105001
|
$40.41 | ||
| 6 |
Main Switch Ass'Y
A3510016600A
|
$44.99 | ||
| 7 |
Tapping Screw Truss Head Phillips M
A9390305016
|
$0.28 | ||
| 8 |
Tapping Screw Truss Head Phillips M
A9390305025
|
$0.56 | ||
| 9 |
Pan Head Philllips Bolt
A9380006015S
|
$3.35 | ||
| 10 |
High Tension Coil
A30510110000
|
|||
| 11 |
Spark Plug Cap
A30700101001
|
$5.56 | ||
| 12 |
Rubber Cap
A30605116000
|
$4.18 | ||
| 13 |
Blank Key (Not Shown)
715900018
|
