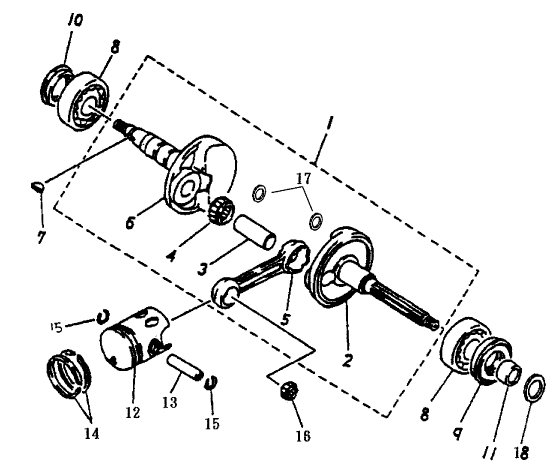

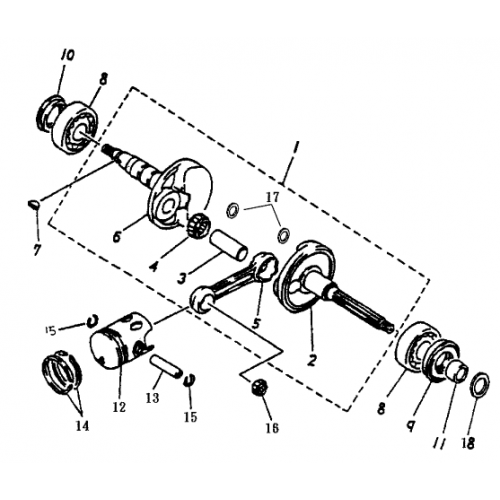

Crankshaft | Pistons (Bombardier Mini DS 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankshaft Ass'Y
A13000146000
|
$145.74 | ||
| 2 |
Left Crank
A13321146000
|
$92.40 | ||
| 3 |
Crank Pin
A13381117000
|
$10.25 | ||
| 4 |
Needle Bearing (18 X 24 X 12)
A96200182412
|
$14.83 | ||
| 5 |
Crank Connecting Rod
A13201117000
|
$40.34 | ||
| 6 |
R.H. Crank
A13311146000
|
$97.78 | ||
| 7 |
Semicycle Key (3 X 13)
A90471104000
|
$2.85 | ||
| 8 |
Radial Ball Bearing (6204C3)
A9610062040
|
$16.74 | ||
| 9 |
Oil Seal (20 X 42/43 X 8/9)
A9650020428
|
$5.13 | ||
| 10 |
Oil Seal (20 X 30/33 X 6)
A9650020306
|
|||
| 11 |
Left Crank Collar (16 X 21 X 12)
A13316117000
|
$3.35 | ||
| 12 |
Piston
A13100146000
|
$42.57 | ||
| 13 |
Piston Pin (9 X 12 X 40)
A13111117000
|
$6.59 | ||
| 14 |
Piston Ring Set
A13011146000
|
$26.35 | ||
| 15 |
Piston Pin Clip (1.0 X 14)
A13115101000
|
$0.42 | ||
| 16 |
Needle Bearing (12 X 15 X 16.6)
A96200121516
|
$14.83 | ||
| 17 |
Plain Washer (18 X 30 X 1)
A941011830010
|
$2.79 | ||
| 18 |
Plain Washer (16.5 X 24 X 0.5)
A941011624005
|
$0.59 |
