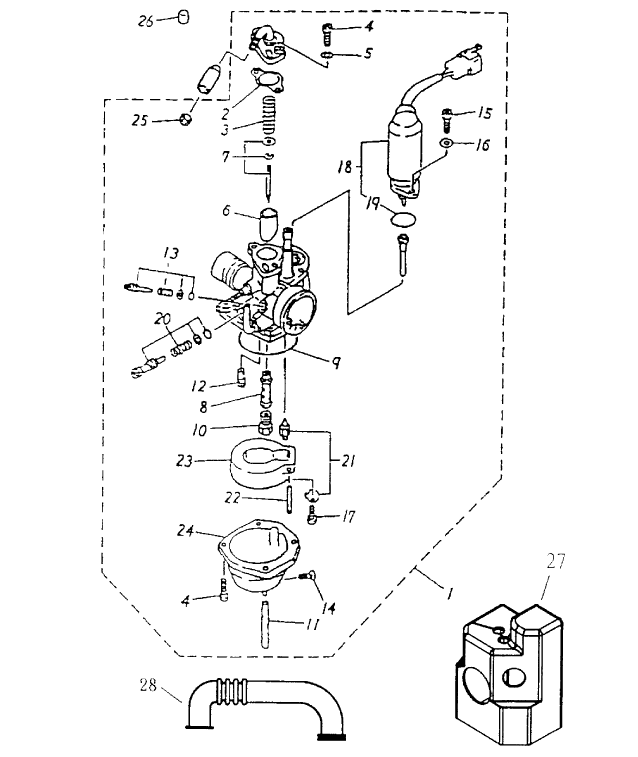

Carburetor (Bombardier Mini DS 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Carburetor Ass'Y
A1610011700A
|
$120.00 | ||
| 2 |
Carburetor Gasket
A16101116000
|
$2.76 | ||
| 3 |
Throttle Valve Spring
A16102116000
|
$2.63 | ||
| 4 |
Pan Phillips Bolt M4 X 14
A9350004014
|
$1.51 | ||
| 5 |
Spring Washer
A941110407010
|
$0.28 | ||
| 6 |
Throttle Valve
A16103116000
|
$19.77 | ||
| 7 |
Needle Set
A16104117000
|
$11.72 | ||
| 8 |
Needle Nozzle
A16105117000
|
$11.72 | ||
| 9 |
Float Chamber Seal
A16106116000
|
|||
| 10 |
Main Nozzle (77.5)
A16108117000
|
$11.70 | ||
| 11 |
Over Flow Tube
A16109116000
|
$1.34 | ||
| 12 |
Pilot Jet
A16110116000
|
$11.72 | ||
| 13 |
Air Adjust Screw Set
A16115116000
|
$6.22 | ||
| 14 |
Drain Plug
A16111116000
|
$2.01 | ||
| 15 |
Pan Head Phillips Bolt M4 X 8
A9350004008
|
$1.12 | ||
| 16 |
Spring Washer
A941110406510
|
$2.79 | ||
| 17 |
Pan Phillips Bolt M3 X 6
A9350003008
|
$2.01 | ||
| 18 |
Plunger Starter
A17215116000
|
|||
| 19 |
Oil Ring
A91314116000
|
$3.35 | ||
| 20 |
Throttle Screw Set
A16114116000
|
