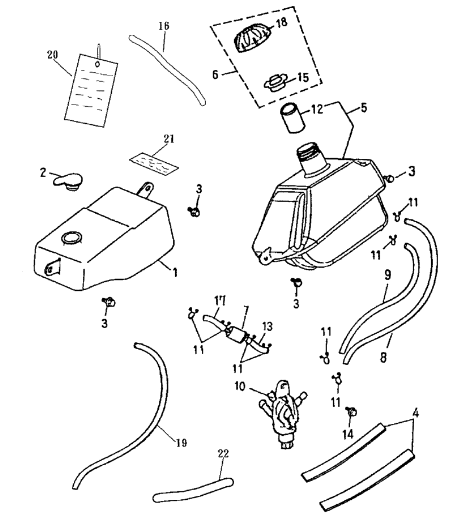

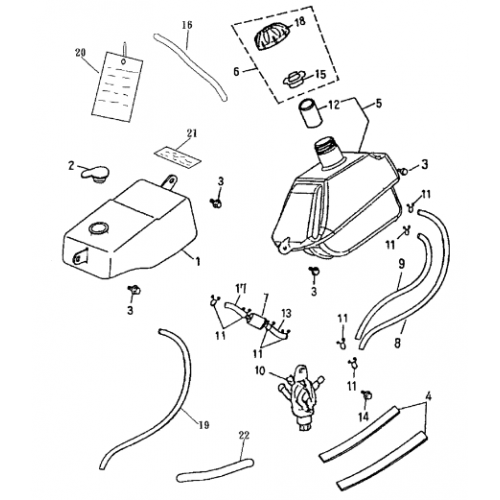

Fuel Tank | Oil Tank (Bombardier Mini DS 50 2T)
Change Assembly
| # | Product Code: | Product Name | Req'd | Price: | |
|---|---|---|---|---|---|
| 1 | A55100145000 | Oil Tank | |||
| 2 | A55105145000 | Oil Tank Cap | $4.89 | ||
| 3 | A920000601410 | Hex. Bolt M6 X 14 | |||
| 4 | A1750514500A | Sponge Pad | $4.46 | ||
| 5 | A17500166000 | Fuel Tank Comp | $61.45 | ||
| 6 | A1762014500A | Fuel Tank Cap | $19.92 | ||
| 7 | A16952145000 | Filter Petrol | $6.97 | ||
| 8 | A944000408300 | Fuel Tube | $3.72 | ||
| 9 | A944000408280 | Fuel Tube | $10.06 | ||
| 10 | A16950145000 | Fuel Cup | $23.55 | ||
| 11 | A9451008000 | Clip | $0.53 | ||
| 12 | A17633145000 | Fuel Tank Tube | $2.39 | ||
| 13 | A944000408160 | Oil Tube | $5.58 | ||
| 14 | A960000601210G | Hex. Washer Face Bolt M6 X 12 | $1.28 | ||
| 15 | A17631145000 | Fuel Tank Cap Gasket | $1.59 | ||
| 16 | A944000408355 | Breather Hose | $7.25 | ||
| 17 | A944000408075 | Tube | $5.31 | ||
| 18 | A1762114500A | Fuel Tank Cap Body | |||
| 19 | A944021617190 | Tube Cover | $3.03 | ||
| 20 | 704900301 | Warning Label, Mini Ds (English) |
