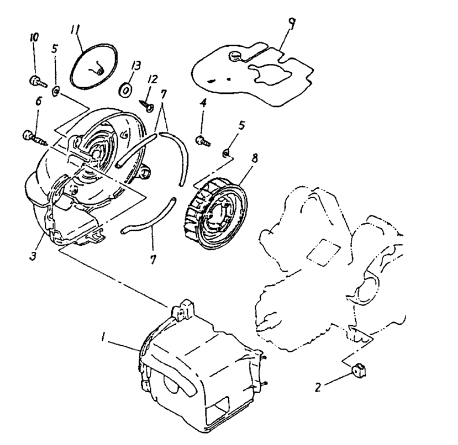

Fan | Air Shroud (Bombardier Mini DS 50 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Air Shroud
A1962011600A
|
|||
| 2 |
Grommet
A83552116000
|
|||
| 3 |
Generator Cover
A19610116000
|
$15.82 | ||
| 4 |
Hex. Socket Bolt M6 X 15
A9100006015
|
$0.95 | ||
| 5 |
Plain Washer (6 X 13 X 1)
A941010613010
|
$0.50 | ||
| 6 |
Tapping Screw Truss Head Phillips M5 X 40
A9390305040
|
$0.49 | ||
| 7 |
Damper
A17632116000
|
|||
| 8 |
Fan
A19510116000
|
|||
| 9 |
Deflector
A55122116000
|
|||
| 10 |
Hex. Socket Bolt M6 X 20
A9100006020
|
$0.67 | ||
| 11 |
Generator Outter Cover
A1961214500A
|
$8.39 | ||
| 12 |
Tapping Screw Truss Head Phillips M
A9390305016
|
$0.28 | ||
| 13 |
Plain Washer (6 X 18 X 1)
A941010618010
|
$0.42 |
