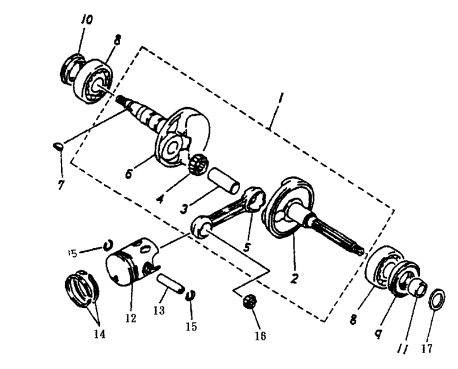

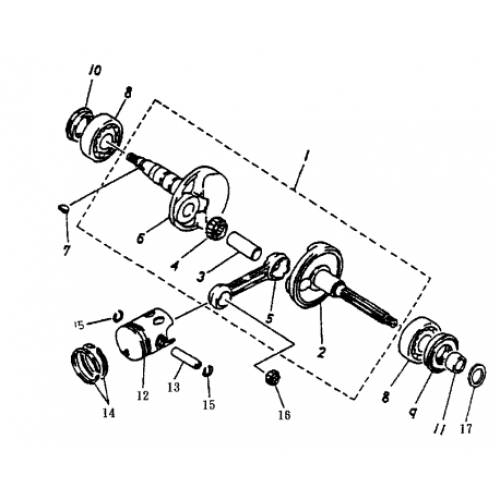

Crankshaft | Pistons (Bombardier Mini DS 50 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankshaft Ass'Y
A13000116000
|
$111.75 | ||
| 2 |
L.H. Crank
A13321116000
|
$97.78 | ||
| 3 |
Crank Pin
A13381104000
|
$10.62 | ||
| 4 |
Needle Bearing (16 X 22 X 12)
A96200162212
|
$14.23 | ||
| 5 |
Crank Connecting Rod
A13201104000
|
$42.69 | ||
| 6 |
R.H. Crank
A13311116000
|
$92.40 | ||
| 7 |
Semicycle Key (3 X 13)
A90471104000
|
$2.85 | ||
| 8 |
Radial Ball Bearing (6204C3)
A9610062040
|
$16.74 | ||
| 9 |
Oil Seal (20 X 42/43 X 8/9)
A9650020428
|
$5.13 | ||
| 10 |
Oil Seal (20 X 30/33 X 6)
A9650020306
|
|||
| 11 |
L.H. Crank Collar (15 X 20 X12)
A13316116000
|
$3.35 | ||
| 12 |
Piston
A13100116000
|
$36.96 | ||
| 13 |
Piston Pin (7 X 10 X 33)
A13111104000
|
$6.59 | ||
| 14 |
Piston Ring Set
A13011116000
|
$22.81 | ||
| 15 |
Piston Pin Clip (1.2 X 12)
A13115104000
|
$0.42 | ||
| 16 |
Needle Bearing (10 X 14 X 12.5)
A96200101412
|
$12.27 | ||
| 17 |
Plain Washer (13 X 19 X 0.5)
A941011319005
|
$1.39 |
