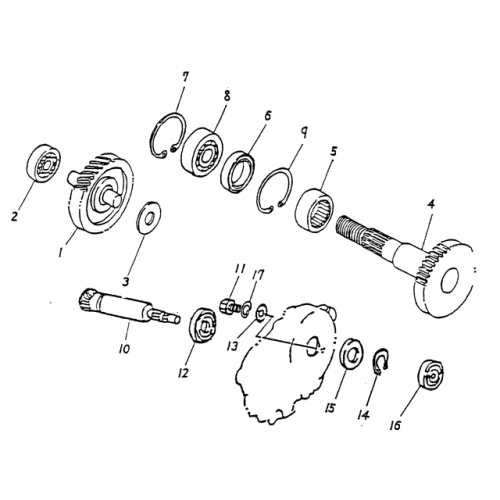

Transmission (Blazer 90cc ATV)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Main Axle Comp
23420-117-000
|
$82.99 | ||
| 2 |
Radial Ball Bearing, 6201C3
96100-62010
|
|||
| 3 |
Plain Washer , 12.2*29*1.6
94101-1229016A
|
$1.33 | ||
| 4 |
Drive Axle
23430-117-000
|
|||
| 5 |
Needle Bearing, HMK2515
96200-253315
|
$23.09 | ||
| 6 |
Oil Seal, 25*35*6
96500-25356
|
|||
| 7 |
Internal Cir Clip, RTW-43
94512-4300R
|
$4.18 | ||
| 8 |
Radial Ball Bearing, 6004LLU
96100-6004U
|
$18.45 | ||
| 9 |
Internal Cir Clip, RTW-34
94512-3400R
|
$2.51 | ||
| 10 |
Primary Drive Gear
23411-117-000
|
$53.12 | ||
| 11 |
Hex Bolt , 6*10
92000-06010-10B
|
$0.59 | ||
| 12 |
Radial Ball Bearing, 6003CM/2AS
96100-60030
|
$13.18 | ||
| 13 |
Plain Washer , 6*20*0.5
94101-0620005A
|
$0.59 | ||
| 14 |
External Circlip, STW-17
94511-1700S
|
$1.26 | ||
| 15 |
Oil Seal, 17*28*5.5
96500-17285
|
|||
| 16 |
Radial Ball Bearing, 638RD
96100-638RD
|
|||
| 17 |
Spring Washer , 6*12*1.5
94111-0612015B
|
$0.50 |
