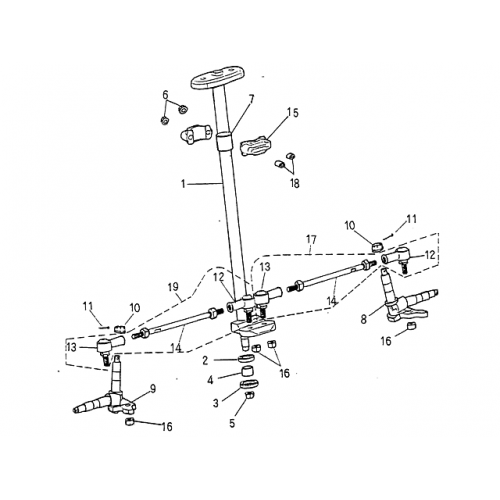

Steering (Blazer 90cc ATV)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Steering Shaft Ass'Y(Rev.4), 22.5*528
51109-145-000
|
$97.33 | ||
| 2 |
Oil Seal, 18*32*7
96500-18327
|
$2.51 | ||
| 3 |
Oil Seal, 22*35*7
96500-22357
|
|||
| 4 |
Spacer Tube, 15*22*15
44620-145-000
|
$6.03 | ||
| 5 |
Hex Flange Nut With Serration, 14mm
94050-14000U
|
$1.67 | ||
| 6 |
Hex Flange Nut, 8mm
94050-08000
|
$0.84 | ||
| 7 |
Pu Bushing
51114-145-000
|
|||
| 8 |
Left Knuckle(Rev.3)
44510-145-000
|
$84.99 | ||
| 9 |
Right Knuckle(Rev.3)
44520-145-000
|
$84.65 | ||
| 10 |
Scotch Flange Nut, 10mm
94052-10000-14C
|
$4.18 | ||
| 11 |
Cotter Pin, 2*19
94201-20190B
|
$0.42 | ||
| 12 |
Ball Joint, Left Thread, ECO
44511-145-000
|
$36.56 | ||
| 13 |
Ball Joint, Right Thread, ECO
44521-145-000
|
$38.81 | ||
| 14 |
Stud Bolt, 10*200
91001-10200
|
$13.64 | ||
| 15 |
Steering Shaft Holder
51113-145-000
|
$7.99 | ||
| 16 |
Hex Flange Nut With Serration, 10mm
94050-10000U
|
$0.67 | ||
| 17 |
Right Link Ass'Y
44500-145-000
|
$72.69 | ||
| 18 |
Holder Spacer Coller
51115-145-000
|
$3.35 | ||
| 19 |
Left Link Ass'Y
44501-145-000
|
$76.38 |
