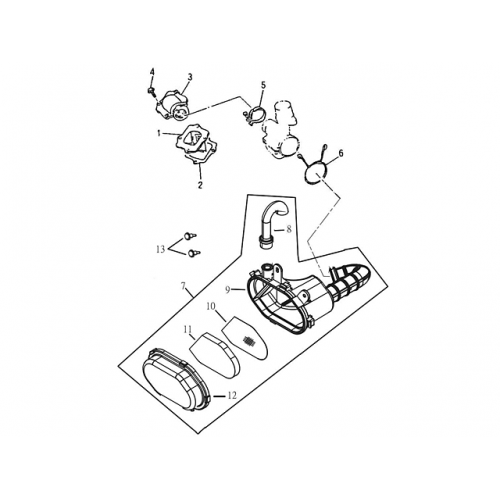

Reed Valve, Air Cleaner, NS (Blazer 90cc ATV)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Reed Valve Ass'Y(Rev.1)
14100-117-000
|
$53.48 | ||
| 2 |
Reed Valve Gasket
17111-116-000
|
|||
| 3 |
Intake Manifold(3Xg)
17100-116-000
|
|||
| 4 |
Hex Washer Face Bolt, 6*18
96000-06018-08C
|
$1.00 | ||
| 5 |
Intake Manifold Hose Clamp, 8mm 1.25
14110-104-000
|
$4.18 | ||
| 6 |
Clip, 40*2.3
94510-40000
|
$1.09 | ||
| 7 |
Air Cleaner Ass'Y
17200-166-000
|
|||
| 8 |
Air Cleaner Joint Pvc+Nbr
17253-166-000
|
|||
| 9 |
Guide Pipe Pvc+Nbr
17219-166-000
|
|||
| 10 |
Air Cleaner Case Assy
17206-166-000
|
$51.98 | ||
| 11 |
Air Cleaner Element
17205-166-000
|
|||
| 12 |
Air Cleaner Cover
17207-166-000
|
$8.86 | ||
| 13 |
Cleaner Filter Net
17210-166-000
|
|||
| 14 |
Ladder Bolt, 6*12.5*3.5
90111-06012-18C
|
$1.51 |
