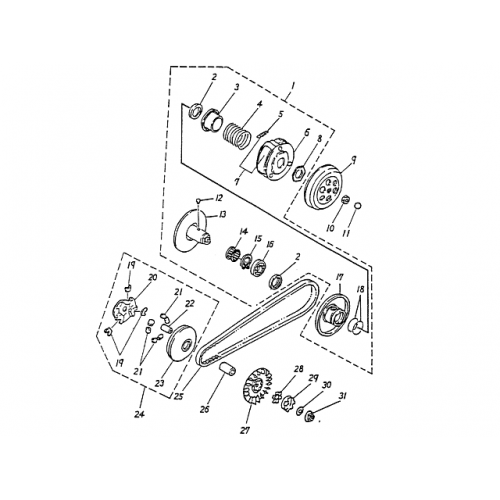

Clutch (Blazer 90cc ATV)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Drive Face Ass'Y (B), B
22000-117-000
|
$148.99 | ||
| 2 |
Oil Seal, 33*39*4
96500-33394
|
$6.96 | ||
| 3 |
Secondary Spring Seat
23237-116-000
|
$7.32 | ||
| 4 |
Compression Spring
23233-117-000
|
$9.15 | ||
| 5 |
Clutch Weight Spring
22401-116-000
|
$2.09 | ||
| 6 |
Clutch Carrier
22350-116-000
|
$43.66 | ||
| 7 |
Clutch Weight Set
22535-116-000
|
$42.57 | ||
| 8 |
Nut, 28*38*4
90202-116-000
|
$4.76 | ||
| 9 |
Clutch Cover Comp
22100-116-000
|
$37.82 | ||
| 10 |
Rh. Hex Jam Nut, 10MM
94001-10000B
|
$3.45 | ||
| 11 |
Oil Ring, 12.5*3
91313-104-000
|
|||
| 12 |
Guide Pin
23225-116-000
|
$1.67 | ||
| 13 |
Secondary Fix Slot Wheel
23200-116-000
|
$60.37 | ||
| 14 |
Needle Bearing, HKS-17*25*18
96200-172518
|
$18.45 | ||
| 15 |
Internal Cir Clip, IRTW-24
94512-240IR
|
$1.51 | ||
| 16 |
Radial Ball Bearing, 6901LU
96100-6901U
|
$15.82 | ||
| 19 |
Cam Plate Slider
22132-104-000
|
$1.51 | ||
| 20 |
Cam Plate
22131-117-000
|
$7.32 | ||
| 21 |
Weight Roller (7.5 G), 7.5 g Set
22121-117-000
|
$16.89 | ||
| 22 |
Bushing, 21*26*22.3
96401-212622
|
$5.86 |
