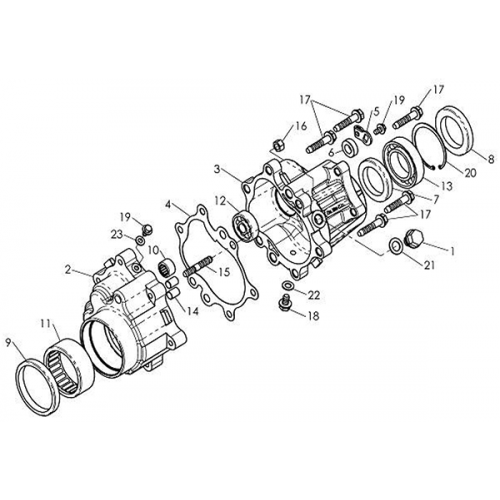

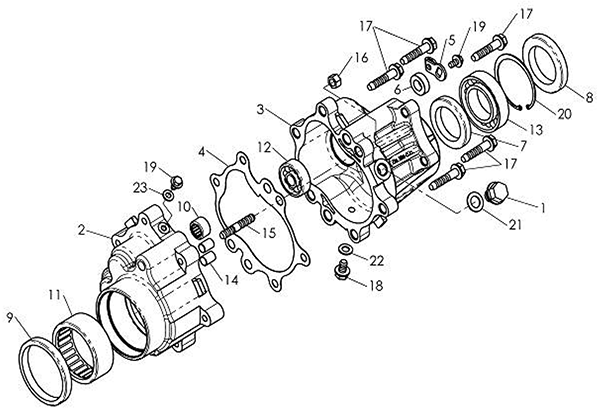

Gear Case (Barossa Silverhawk 250)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Bolt,Flange 12*13
15163-QUA-00
|
|||
| 2 |
Left Gear Case
42831-QUA-00
|
|||
| 3 |
Right Gear Case
42832-QUA-00
|
|||
| 4 |
Gasket,Gear Case
42833-QUA-00
|
|||
| 5 |
Rocker Arm,Reverse Gear Shift
42855-QUA-00
|
|||
| 6 |
Oil Seal Tc12227
93110-12227
|
|||
| 7 |
Oil Seal Tc38558
93110-38558
|
|||
| 8 |
Oil Seal Tc42629
93110-42629
|
|||
| 9 |
Oil Seal Tc62729
93110-62729
|
|||
| 10 |
Bearing,Radial Ball Rna4900
93310-142213RN
|
|||
| 11 |
Bearing,Radial Ball Nk5525
93310-556825N
|
|||
| 12 |
Bearing,Radial Ball 6301A
93320-123712A
|
|||
| 13 |
Bearing,Radial Ball 6007Z
93320-356214Z
|
|||
| 14 |
PIN DOWEL 10*14
94410-10014
|
$1.39 | ||
| 15 |
BOLT, STUD 8*42
94717-08042-C
|
$5.93 | ||
| 16 |
NUT, HEXAGON
95201-081207-B
|
$0.83 | ||
| 17 |
Bolt,Flange 8*38
96414-08038-B
|
|||
| 18 |
BOLT, FLANGE
96414-08012-B
|
$1.26 | ||
| 19 |
Bolt,Flange 6*10
96414-06010-C
|
$0.70 | ||
| 20 |
Circlip F62
97012-62020-K
|
