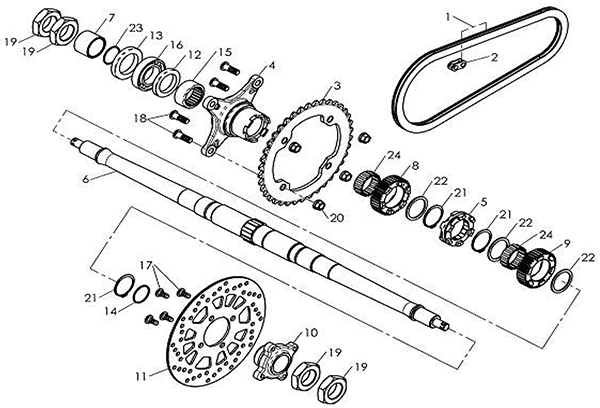

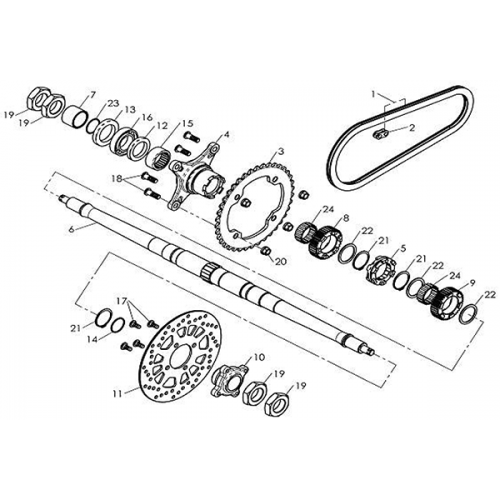

Axle (Barossa Silverhawk 250)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CHAIN 520H*94L
25741-CBT-00
|
$34.82 | ||
| 2 |
JOINT, CHAIN
25742-RAM-00
|
$6.82 | ||
| 3 |
Sprocket,Driven 40T
42812-QUA-00
|
$34.82 | ||
| 4 |
Collar,Sprocket Axle
42821-QUA-00
|
$80.96 | ||
| 5 |
Slide A
42834-QUA-00
|
$54.03 | ||
| 6 |
Axle,Wheel
42835-QUA-00
|
|||
| 7 |
Collar,Axle Wheel
42836-QUA-00
|
$12.55 | ||
| 8 |
Gear A 40T
42837-QUA-00
|
$76.27 | ||
| 9 |
Gear D 40T
42838-QUA-00
|
$69.23 | ||
| 10 |
Bracket,Disc
45830-QUA-00
|
$34.82 | ||
| 11 |
DISC, BRAKE
45831-RAM-00
|
$64.53 | ||
| 12 |
Oil Seal Tc38558
93110-38558
|
|||
| 13 |
Oil Seal Tc42629
93110-42629
|
|||
| 14 |
O-Ring 2*32
93210-20320
|
|||
| 15 |
Bearing,Radial Ball Nk3820
93310-384820N
|
|||
| 16 |
Bearing,Radial Ball 6007Z
93320-356214Z
|
|||
| 17 |
BOLT, BUTTON
94706-08017-B
|
$1.39 | ||
| 18 |
Bolt,Button 10*29
94706-10029-B
|
|||
| 19 |
Nut,Hexagon
95201-325014-C
|
|||
| 20 |
NUT,LOCK
95301-101410-B
|
$1.24 |
