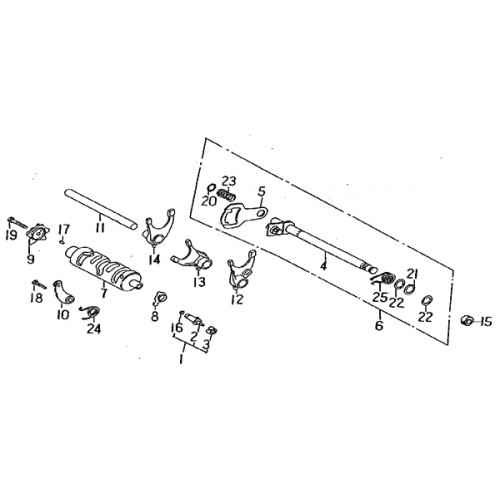

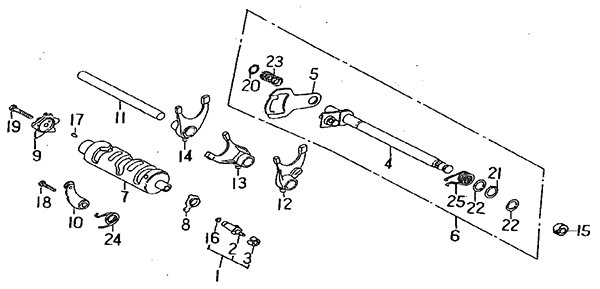

Gear Shift (Barossa ATV 170)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CONTACT ASS'Y, NEUTRAL SWITCH
15126-CHP-00
|
$9.75 | ||
| 2 |
CONTACT, NEUTRAL SWITCH
15127-CHP-00
|
$8.54 | ||
| 3 |
SPACER, NEUTRAL SWITCH
15128-CHP-00
|
$3.50 | ||
| 4 |
SPINDLE, GEAR SHIFT
24201-CHP-00
|
$36.01 | ||
| 5 |
PLATE, GEAR SHIFT
24206-CHP-00
|
$12.55 | ||
| 6 |
SPINDLE COMP, GEAR SHIFT
24210-CHP-00
|
$42.02 | ||
| 7 |
DRUM, GEAR SHIFT
24220-CHP-00
|
$46.82 | ||
| 8 |
ROTOR, NEUTRAL SWITCH
24223-CHP-00
|
$5.22 | ||
| 9 |
CAM, GEAR SHIFT
24226-CHP-00
|
|||
| 10 |
STOPPER COMP, GEAR SHIFT
24228-CHP-00
|
$8.54 | ||
| 11 |
SHAFT, GEAR SHIFT FORK
24236-CHP-00
|
$10.29 | ||
| 12 |
FORK, L GEAR SHIFT
24237-CHP-00
|
$22.59 | ||
| 13 |
FORK, CENTER GEAR SHIFT
24238-CHP-00
|
$23.85 | ||
| 14 |
FORK, R GEAR SHIFT
24239-CHP-00
|
$23.85 | ||
| 15 |
OIL SEAL 14*28*7
93110-14287
|
$6.97 | ||
| 16 |
O-RING 1.9*7
93210-19070
|
$1.05 | ||
| 17 |
PIN, DOWEL 4*10
94510-40010
|
$1.39 | ||
| 18 |
BOLT, HEXAGON 6*20
96210-06020-B
|
$0.70 | ||
| 19 |
BOLT, HEXAGON 6*25
96210-06025-B
|
$0.84 | ||
| 20 |
CIRCLIP 12MM
97010-12010
|
