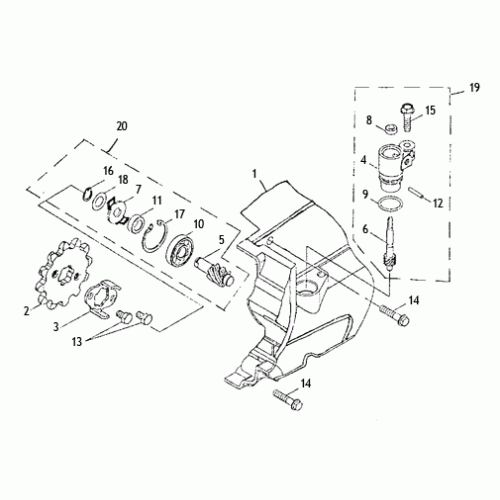

Gear, Speedometer (Kasea Skyhawk 250 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
COVER,L REAR CRANKCASE
15421-CBT-01
|
$46.82 | ||
| 2 |
SPROCKET DRIVE(14T)
25711-CBT-00
|
$17.43 | ||
| 3 |
PLATE,FIXING
25716-RAM-00
|
$4.18 | ||
| 4 |
GEAR,SPEEDOMETER BODY
42563-GOO-00
|
|||
| 5 |
GEAR DRIVE (8T)
45835-CBT-00
|
|||
| 6 |
GEAR,SPEEDOMETER (10T)
45838-RAM-00
|
|||
| 7 |
CLUTCH SPEEDOMETER
45849-CBT-00
|
|||
| 8 |
OIL SEAL VC 6*11*4
93110-06114
|
$5.58 | ||
| 9 |
O-RING 1.5*19
93210-15190
|
$1.39 | ||
| 10 |
BEARING,RADIAL BALL 6200LUCS05/2A
93320-103009U
|
$15.06 | ||
| 11 |
COLLAR
93510-101706-B
|
$6.97 | ||
| 12 |
PIN,DOWEL 3*18
94510-30018
|
$1.39 | ||
| 13 |
BOLT, HEXAGON 6*10
96210-06010-B
|
$0.70 | ||
| 14 |
BOLT, FLANGE 6*20
96411-06020-B
|
$1.05 | ||
| 15 |
BOLT, FLANGE
96414-06025-B
|
$1.05 | ||
| 16 |
CIRCLIP STW-10
97010-10010-K
|
|||
| 17 |
CIRCLIP RTW-30
97012-30012-K
|
|||
| 18 |
WASHER, PLATE 10.5*18*0.5
97201-101805
|
$0.82 | ||
| 19 |
GEAR,SPEEDOMETER ASS'Y
42560-AAM-00
|
$46.82 | ||
| 20 |
GEAR DRIVE ASS'Y
45834-CBT-00
|
$23.85 |
