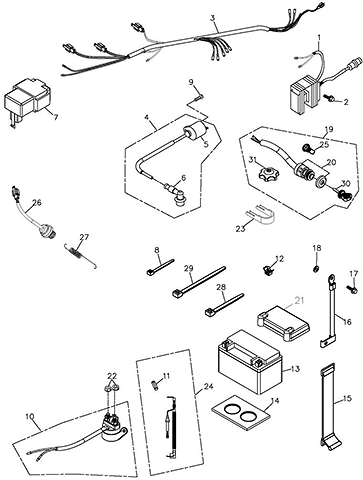

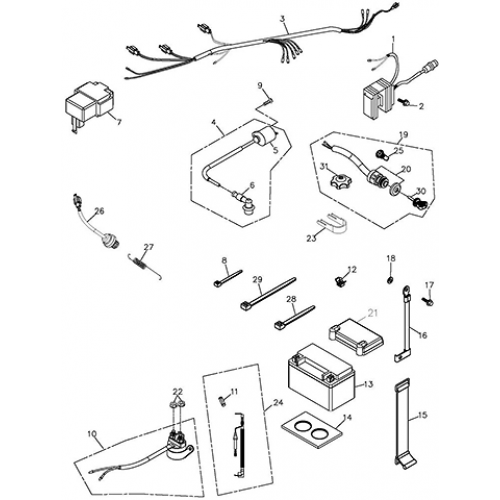

Battery and Wire Harness (Adly ATV Q300)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Regulater Rectifier(25A)
31600-169-0A1
|
$120.17 | ||
| 2 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 3 |
Wire Harness
32100-225-000
|
|||
| 4 |
Ignition Coil Ass'Y
30500-169-000
|
|||
| 5 |
High Tension Coil
30510-169-000
|
|||
| 6 |
Spark Plug Cap
30700-169-000
|
|||
| 7 |
C.D.I Unit
30410-225-003
|
|||
| 8 |
Cable Tie, 3*150 m/m
90669-168-000
|
$0.50 | ||
| 9 |
Hex Washer Face Bolt, 5*24
96000-05024-08C
|
$2.72 | ||
| 10 |
Starter Solenoid, REV.a
38501-501-001
|
$51.69 | ||
| 11 |
Fuse, 20A
98200-169-000
|
$3.35 | ||
| 12 |
Push Tie Mount
90801-179-000BK
|
$1.17 | ||
| 13 |
Battery, WP 12-B
31500-225-000
|
|||
| 14 |
Rubber Pad
30003-169-000
|
|||
| 15 |
Battery Strap
31520-169-000
|
|||
| 16 |
Ground Wire
32103-169-001
|
$11.86 | ||
| 17 |
Hex Washer Face Bolt, 6*12
96000-06012-10G
|
$1.34 | ||
| 18 |
Ext. Toothed Lock Washer, 6*11*0.6
94115-0611006
|
$0.84 | ||
| 19 |
Key Set
35010-258-000
|
$119.00 | ||
| 20 |
Main Switch
35100-223-00A
|
$40.34 |
