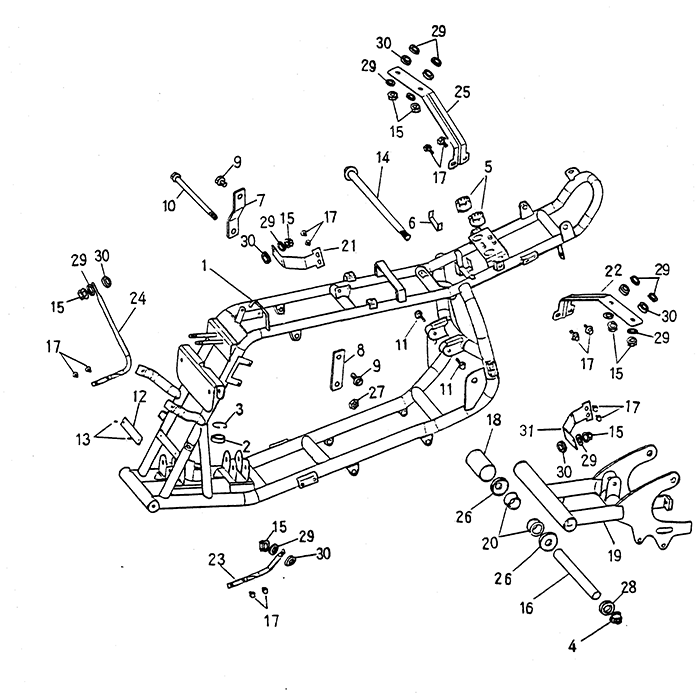

Frame Body

Change Assembly

Frame Body
# Product Name Req'd Price:
1 Frame Comp
50100-145-000
$346.30
2 Radial Ball Bearing, 6002ZZ
96100-6002ZZ
$11.98
3 Internal Cir Clip, RTW-32
94512-3200R
4 Hex Flange Nut With Serration, 14mm
94050-14000U
$1.67
5 Rubber
77211-145-000
$2.68
6 Sponge Pad
31511-145-000
7 R. Engine Fixed Plate
50353-145-000
$5.86
8 L. Engine Fixed Plate
50354-145-000
9 Hex Washer Face Bolt, 10*20
96000-10020-14
$3.01
10 Hex Washer Face Bolt, 10*208
96000-10208-14
$8.79
11 Hex Washer Face Bolt, 8*36
96000-08036-12
$2.51
12 Frame No. Plate
50110-145-000
13 Rivet, #4-3
90662-105-000
$0.42
14 Hex Washer Face Bolt, 14*290
96000-14290-19
15 Nylon Nut, 6mm
90350-06000
16 Swing Arm Spacer, 14*20*253
52104-145-000
$11.72
17 Hex Bolt, 6*14
92000-06014-10
18 Rubber Sleeve
52101-145-000
19 Swing Arm Sub Ass'Y, M8
52100-145-001
$102.89
20 Bush
52103-145-000
Showing 1 to 20 of 31 (2 Pages)
