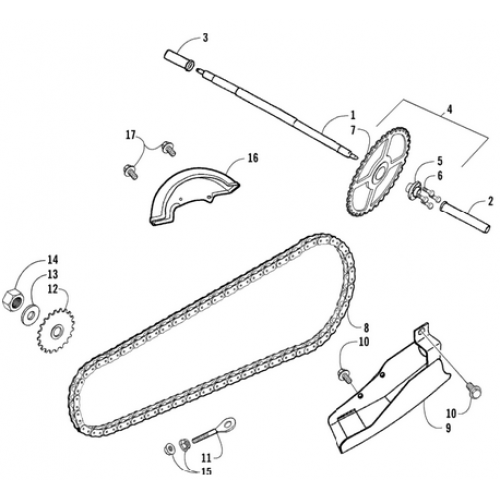

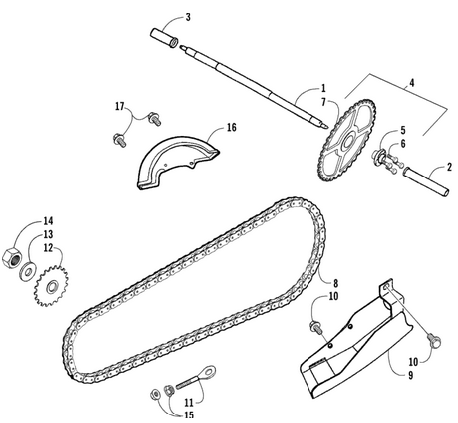

Rear Drive Assembly (Arctic Cat 90 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Axle, Rear Wheel
3301-161
|
$151.53 | ||
| 2 |
Collar, Spacer - Right
3301-173
|
$15.76 | ||
| 3 |
Collar, Spacer - Left
3301-174
|
$14.63 | ||
| 4 |
Rear Sprocket Assembly | (Inc. 5-7)
3301-163
|
|||
| 5 |
Flange, Final Drive
3301-165
|
$26.50 | ||
| 6 |
Screw, Cap
3301-399
|
|||
| 7 |
Sprocket, Rear
3301-159
|
|||
| 8 |
Chain, Drive
3301-157
|
|||
| 9 |
Guard, Chain
3301-155
|
$38.69 | ||
| 10 |
Screw, Cap
3301-393
|
$1.39 | ||
| 11 |
Adjuster, Drive Chain
3301-573
|
$6.64 | ||
| 12 |
Drive Sprocket Assembly
3301-123
|
$34.87 | ||
| 13 |
Washer
3301-352
|
|||
| 14 |
Nut, Nylon
3301-284
|
|||
| 15 |
Nut, Flange
3301-327
|
|||
| 16 |
Guard, Chain - Rear
3301-156
|
|||
| 17 |
Screw, Cap
3301-386
|
