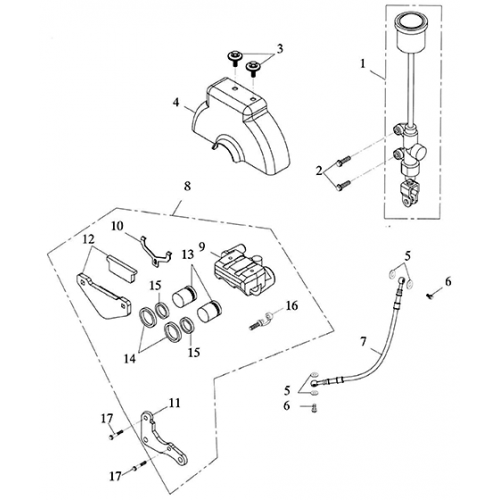

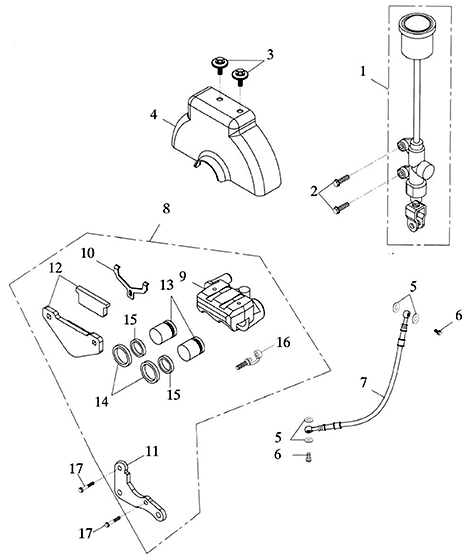

Rear Brake System (Adly GK-125 (BK-125) 2005)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Brake Cylinder Sub Ass'Y (Rev.1)
43500-168-000
|
$102.89 | ||
| 2 |
Hex Washer Face Bolt, 8*12
96000-08012-10
|
$0.67 | ||
| 3 |
Ladder Bolt, 6*14*3
90111-06014-18G
|
$1.67 | ||
| 4 |
Front Brake Disc Cover
45018-168-000
|
$11.72 | ||
| 5 |
Copper Plain Washer, 10*14.5*1
94101-1014510
|
$0.42 | ||
| 6 |
Brake Hose Fix Bolt, 10*22
45456-107-000
|
$2.43 | ||
| 7 |
Rear Brake Hose (Rev.1)
43460-168-000
|
$64.06 | ||
| 8 |
Rear Brake Caliper Ass'Y
43000-197-000
|
|||
| 9 |
Caliper Body
45010-168-000
|
$60.37 | ||
| 10 |
Pad Bracket
45025-168-000
|
$11.72 | ||
| 11 |
Support Bracket
43001-168-000
|
$19.77 | ||
| 12 |
Rear Brake Pad Kit
45120-168-000
|
$25.36 | ||
| 12 |
Rear Brake Pad Kit
45130-168-000
|
$42.16 | ||
| 13 |
Caliper Piston
45046-168-000
|
|||
| 14 |
Caliper Oil Seal
45042-168-000
|
$4.69 | ||
| 15 |
Caliper Seal
45041-168-000
|
$4.76 | ||
| 16 |
Breed Screw Kit
45031-107-000
|
$4.76 | ||
| 17 |
Hex Washer Face Bolt, 10*87
96000-10087-14
|
