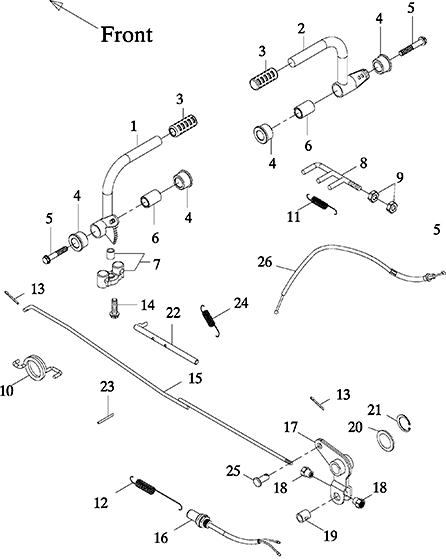

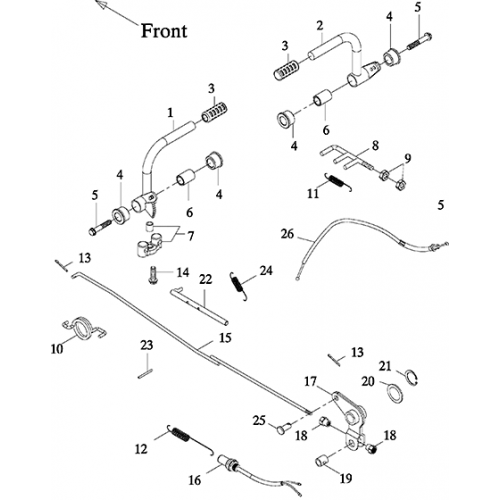

Pedal System (Adly GK-125 (BK-125) 2005)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Brake Pedal Comp
46500-168-000
|
$25.04 | ||
| 2 |
Accelerator Pedal
46600-168-000
|
$20.10 | ||
| 3 |
Pedal Rubber (Rev.1)
50710-168-000
|
|||
| 4 |
Bush
51202-168-000
|
|||
| 5 |
Hex Washer Face Bolt, 10*60
96000-10060-14
|
$4.02 | ||
| 6 |
Spacer, 14*46L
50708-168-000
|
$5.13 | ||
| 7 |
Cable Bracket
53173-145-000
|
$8.79 | ||
| 8 |
Pedal Fix Bracket
46601-168-000
|
$9.15 | ||
| 9 |
Hex Nut, 6mm
94001-06000
|
|||
| 10 |
Return Spring(Rev.1)
42617-168-000
|
$3.35 | ||
| 11 |
Reset Spring
45437-145-000
|
|||
| 12 |
Stop Switch Spring
35357-108-000
|
|||
| 13 |
Cotter Pin, 2.0*15
94201-20150
|
|||
| 14 |
Hex Flange Bolt, 6*16
96000-06016
|
$0.84 | ||
| 15 |
Brake Rod
43450-193-000
|
|||
| 16 |
Stop Switch Ass'Y
35350-108-000
|
$10.54 | ||
| 17 |
Brake Elbow
45520-168-000
|
$9.15 | ||
| 18 |
Drive Nut
43452-168-000
|
$2.51 | ||
| 19 |
Rear Brake Fixture, 12*22
95015-31001
|
$2.01 | ||
| 20 |
Plain Washer, 16.5*24*0.5
94101-1624005
|
