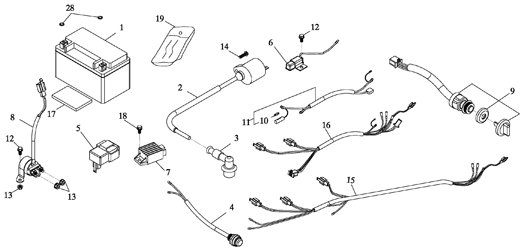

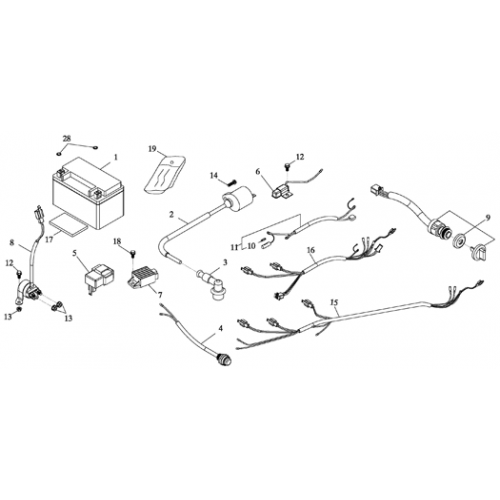

Electrical Equipment (Adly GK-125 2009)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Battery, YTX7A-BS
31500-120-000
|
$49.12 | ||
| 2 |
High Tension Coil, L=450mm
30510-168-000
|
$44.12 | ||
| 3 |
Spark Plug Cap, 10 kOm
30700-168-000
|
$10.25 | ||
| 4 |
Eng.Stop Switch
35200-168-000
|
$15.82 | ||
| 5 |
C.D.I Unit (30410)
30410-120-0D0
|
$56.60 | ||
| 6 |
Resistor Comp
35400-168-0A0
|
$15.82 | ||
| 7 |
Regulater Rectifier
31600-120-0A0
|
$44.12 | ||
| 8 |
Starting Relay
38501-168-000
|
$40.34 | ||
| 9 |
Ignition Switch Ass'Y
35100-168-000
|
$44.12 | ||
| 10 |
Fuse, 7A
98200-106-000
|
$3.35 | ||
| 11 |
Battery Wire
32101-168-000
|
$19.77 | ||
| 12 |
Hex Washer Face Bolt, 6*12
96000-06012-10C
|
$1.34 | ||
| 13 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 | ||
| 14 |
Hex Washer Face Bolt, 5*24
96000-05024-08C
|
$2.72 | ||
| 15 |
Starting Wire Hardness
32102-168-001
|
$35.30 | ||
| 16 |
Main Wire Hardness(Rev.2)
32103-168-000
|
$40.34 | ||
| 17 |
Sponge Pad, 140*70*10mm
31511-168-000
|
$0.67 | ||
| 18 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 19 |
Tool Bag
50120-120-000
|
$14.76 | ||
| 20 |
Main Wire Harness
32100-168-001
|
