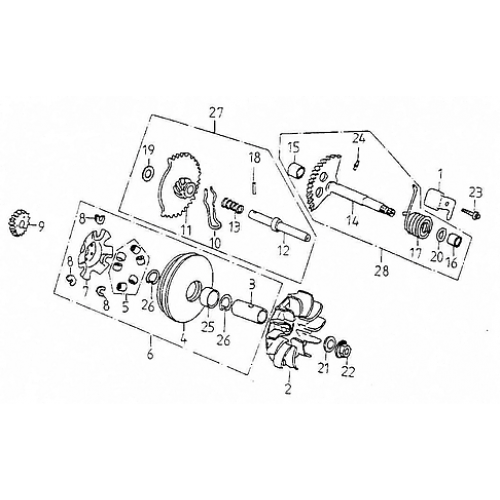

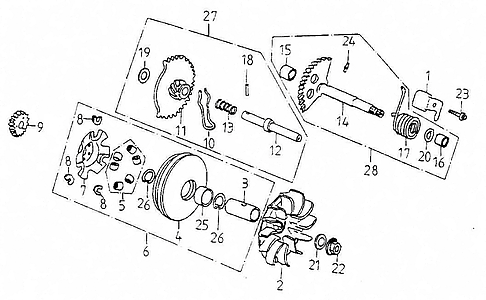

Drive Face (Adly GK-125 2009)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Plate Kick Return Stopper
11207-120-000
|
$10.25 | ||
| 2 |
Drive Face
22102-120-000
|
$21.68 | ||
| 3 |
Drive Face Boss, 15*24*51.8
96401-152451
|
$11.72 | ||
| 4 |
Primary Drive Face
22110-120-000
|
$35.30 | ||
| 5 |
Roller Comp Weight, 13G Set
22121-120-000
|
|||
| 6 |
Face Ass'Y Movable Drive
22103-120-000
|
$60.37 | ||
| 7 |
Plate Ramp
22131-120-000
|
$11.72 | ||
| 8 |
Sider
22132-120-000
|
$1.67 | ||
| 9 |
Kick Drive Gear, 20T
28211-120-0A0
|
$18.45 | ||
| 10 |
Starter Gear Friction Spring
28223-120-000
|
$4.18 | ||
| 11 |
Gear Comp Starter Idle, 13T/49T
28230-120-000
|
$25.34 | ||
| 12 |
Starter Shaft
28241-120-000
|
$12.19 | ||
| 13 |
Starter Idle Spring
28242-120-000
|
$2.68 | ||
| 14 |
Starter Spindle Comp
28250-120-000
|
$37.82 | ||
| 15 |
Bush, 12*16*12
96401-121612
|
$4.18 | ||
| 16 |
Starter Spindle Bush B, 14*18*16
96401-141816
|
$2.51 | ||
| 17 |
Starter Spring
28281-120-000
|
$5.49 | ||
| 18 |
Pin, 3*8.5
28282-120-000
|
|||
| 19 |
Plain Washer, 12.6*22.3*1.6
94101-1222015
|
$0.67 | ||
| 20 |
Plain Washer, 14*22*1.2
94101-1422012
|
$1.34 |
