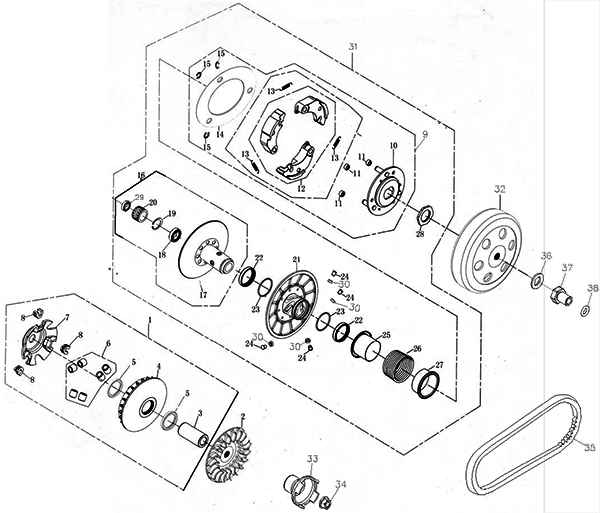

Driven Pulley (Adly ATV Q280)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Movable Drive Face Ass'Y
22103-225-00A
|
$119.00 | ||
| 2 |
Drive Face
22102-225-000
|
$37.82 | ||
| 3 |
Bushing, 19*27*62.5
96401-192763
|
|||
| 4 |
Face Comp Movable Drive
22110-225-000
|
|||
| 5 |
Oil Seal, 26*35*4
96500-26354
|
$4.98 | ||
| 6 |
Weight Roller Set
22121-225-000
|
$31.75 | ||
| 7 |
Cam Plate
22131-225-000
|
$11.72 | ||
| 8 |
Slide Piece
22132-225-000
|
$3.62 | ||
| 9 |
Plate Ass'Y Drive
22001-225-000
|
|||
| 10 |
Drive Plate
22350-225-000
|
|||
| 11 |
Clutch Damper Bubber
22804-225-000
|
$1.87 | ||
| 12 |
Clutch Weight Set
22535-225-000
|
|||
| 13 |
Spring Clutch
22401-225-000
|
|||
| 14 |
Clutch Side Plate
22351-225-000
|
|||
| 15 |
External Cir Clip, ETW-7
94511-0700E
|
$0.50 | ||
| 16 |
Cvt Drive Unit
23200-225-000
|
|||
| 17 |
Face Ass'Y Driven
23210-225-000
|
|||
| 18 |
Radial Ball Bearing, 6902LU C3
96100-6902LU
|
|||
| 19 |
Internal Cir Clip, RTW-28
94512-2800R
|
$2.68 | ||
| 20 |
Needle Bearing, 22*31*12
96200-223112
|
