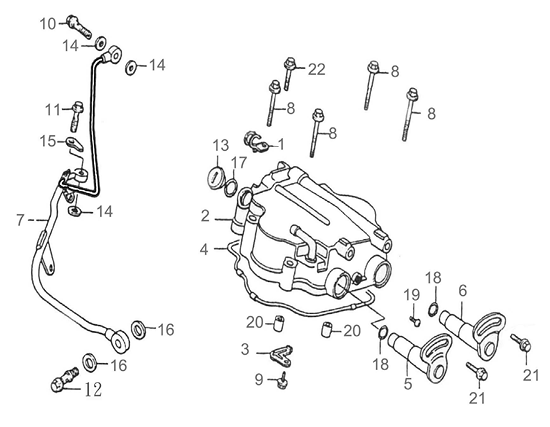

Cylinder Head Cover (Adly ATV Q280)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Clamp
11351-120-00A
|
$1.59 | ||
| 2 |
Cylinder Head Cover, PK-M504C
12310-225-000
|
|||
| 3 |
Fix Bracket
12320-225-000
|
|||
| 4 |
Head Cover Gasket, PK-M504C
12391-225-000
|
$5.86 | ||
| 5 |
In. Rocker Arm Shaft, 6*20
14452-225-000
|
$27.41 | ||
| 6 |
Ex. Rocker Arm Shaft, 8*25.5
14453-225-000
|
$27.41 | ||
| 7 |
Oil Pipe, 8*25.5
15201-225-000
|
$64.06 | ||
| 8 |
Hex Flange Bolt, 6*50
96000-06050-08B
|
$1.34 | ||
| 9 |
Hex Flange Bolt, 6*16
96000-06016-08B
|
$0.67 | ||
| 10 |
Oil Bolt, 8*25.5
45456-225-000
|
$4.02 | ||
| 11 |
Oil Bolt, 8*25.5
45457-225-000
|
$4.02 | ||
| 12 |
Oil Bolt, 12*28
45458-225-000
|
$5.86 | ||
| 13 |
A.C.G. Cap (Small), 14mm
90084-108-000
|
$4.18 | ||
| 14 |
Copper Plain Washer, 8*15*1.2
94103-0815012
|
|||
| 15 |
Fix Bracket
15207-225-000
|
|||
| 16 |
Copper Plain Washer, 12.5*20*1.5
94103-1220015
|
|||
| 17 |
Oil Ring, 13.8*2.5
91313-108-000
|
$1.26 | ||
| 18 |
Oil Ring, 9.4*2.4
91309-108-000
|
|||
| 19 |
Pan Phillips Bolt, 5*18
93500-05018K
|
|||
| 20 |
Dowel Pin, 8*10*14
94301-10140
|
$1.26 |
