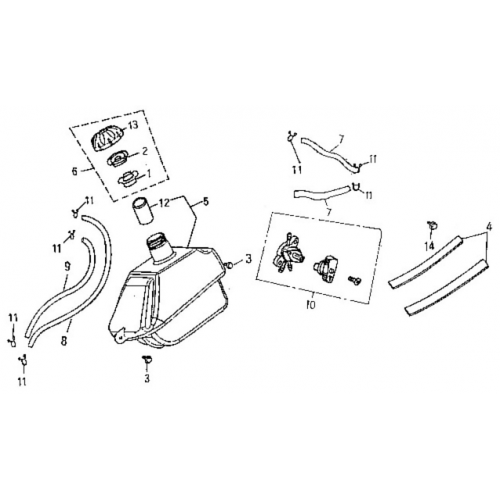

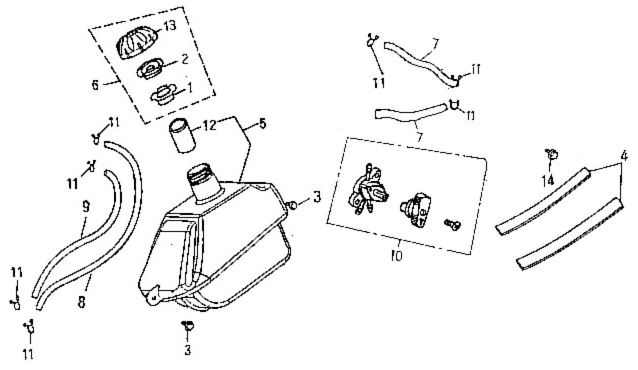

Fuel Tank (Adly ATV 90Z2 4T (Gear Drive))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Fuel Tank Cap Gasket
17631-145-000
|
|||
| 2 |
Fuel Tank Cap Bushing
17632-145-001
|
$2.34 | ||
| 3 |
Hex Washer Face Bolt, 6*14
92006-06014-10G
|
$2.09 | ||
| 4 |
Sponge Pad, 30*100*4
17505-145-00A
|
$4.69 | ||
| 5 |
Fuel Tank Comp
17500-155-001
|
$85.01 | ||
| 6 |
Fuel Cap Ass'Y
17620-145-001
|
|||
| 7 |
Tube, 4.8*8*182
94400-0408182
|
|||
| 8 |
Fuel Tube
17512-145-000
|
|||
| 9 |
Fuel Tube
17513-145-000
|
$6.03 | ||
| 10 |
Fuel Cup
16950-152-000
|
$17.79 | ||
| 11 |
Clip, 8*0.8
94510-08000
|
$0.69 | ||
| 12 |
Fuel Tank Tube
17633-145-000
|
|||
| 13 |
Fuel Tank Cap Body, NYLON66
17621-145-001
|
|||
| 14 |
Pan Phillips Bolt, M5*16
93500-05016B
|
$0.59 |
