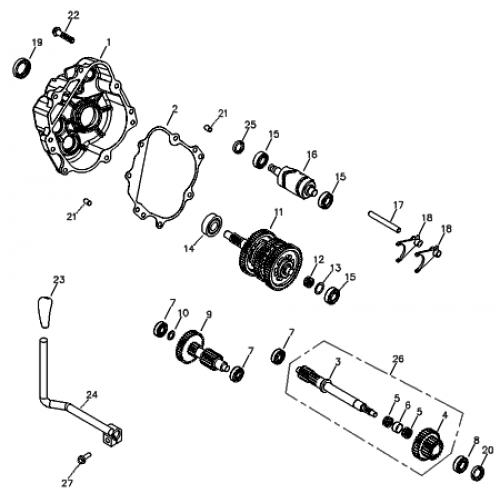

Transmission (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Mission Cover
21301-199-00B
|
|||
| 2 |
Mission Cover Gasket
21395-199-000
|
|||
| 3 |
Drive Shaft
23411-199-000
|
|||
| 4 |
Idle Gear
23407-199-000
|
|||
| 5 |
Needle Bearing, 17*21*10
96200-172110
|
|||
| 6 |
Space Tube, 17*21*12
96403-172112
|
|||
| 7 |
Radial Ball Bearing, 6201C3
96100-62010
|
|||
| 8 |
Radial Ball Bearing, 6003CM/2AS
96100-60030
|
|||
| 9 |
Middle Axle
23211-199-000
|
|||
| 10 |
Plain Washer, 12*20*1
94105-1220010
|
|||
| 11 |
Drive Axle Ass'Y
23220-199-00A
|
|||
| 12 |
Needle Bearing, 18*22*13
96200-182213
|
|||
| 13 |
Plain Washer, 18*26*1
94105-1826010A
|
|||
| 14 |
Radial Ball Bearing, 6204C3
96100-62040
|
|||
| 15 |
Radial Ball Bearing, 6202
96100-62020
|
|||
| 16 |
Gear Shift Arm
24630-199-001
|
|||
| 17 |
Gear Shift Fork Guide Shaft, 12*100
24241-199-000
|
|||
| 18 |
Gear Shift Fork
24211-199-000
|
|||
| 19 |
Oil Seal, 20*35*7
96500-20357
|
|||
| 20 |
Oil Seal, 17*30*6
96500-17306
|
$2.82 |
