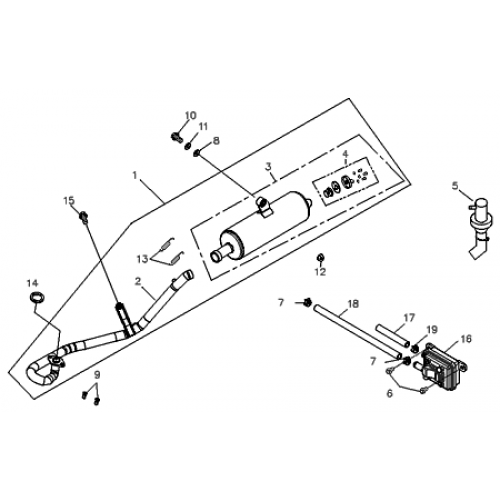

Exhaust Muffler (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Exhaust Pipe Ass'Y
18300-213-00A
|
|||
| 2 |
Exhaust Pipe Of Front Section
18311-213-00A
|
|||
| 3 |
Silencer Muffler
18321-213-00A
|
|||
| 4 |
Spark Arrester
18330-152-000
|
|||
| 5 |
Protective Cover
18319-158-000
|
|||
| 6 |
Muffler Shroud Gasket, 6mm
18292-104-000
|
|||
| 7 |
Hex Bolt, 6*8
92000-06008-10C
|
$1.34 | ||
| 8 |
Spring Washer, 8*14.5*2
94111-0814520G
|
$0.50 | ||
| 9 |
Nut Cap, 6mm
90301-06000C
|
$4.18 | ||
| 10 |
Hex Flange Bolt, M8*35
96000-08035-12G
|
$2.01 | ||
| 11 |
Plain Washer, 8*16*2
94101-0814020G
|
$0.84 | ||
| 12 |
Nylon Nut, M8
90350-08000G
|
|||
| 13 |
Exhaust Pipe Gasket
18291-133-000
|
$3.63 | ||
| 14 |
Exhaust Pipe Gasket
18291-101-000
|
$4.49 | ||
| 15 |
Hex Flange Bolt, M8*25
96000-08025-12G
|
$2.01 | ||
| 16 |
Reed Valve Comp
17410-116-000
|
|||
| 17 |
Reed Valve Comp In. Pipe, L=60
17411-145-000
|
$11.72 | ||
| 18 |
Reed Valve Comp Ex. Pipe, 340mm
17412-127-000
|
$10.98 | ||
| 19 |
Spring Clamp, 16mm
94513-16000
|
|||
| 20 |
Spring Clamp, 18mm
94513-18000
|
