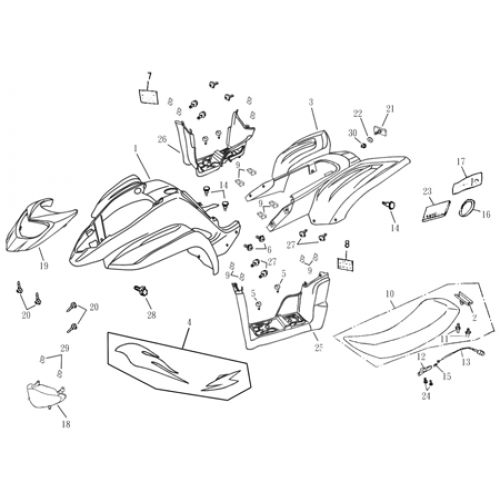

Body Cover, Seat (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front Cover, PP
64301-181-002
|
$90.67 | ||
| 2 |
Seat Bracket
77201-145-000
|
$18.98 | ||
| 3 |
Rear Cover, PP
83400-181-002
|
|||
| 4 |
Sticker (Set)
87700-181-000
|
|||
| 5 |
Pan Flat Head Phillips Bolt, 6*15
93701-06015S
|
$1.67 | ||
| 6 |
Pan Head Phillips Bolt M6 X 20
93800-06020S
|
$1.67 | ||
| 7 |
Sticker, Warning (Y-12), Y-12
87705-155-000
|
|||
| 8 |
Sticker, Warning
87704-155-000
|
$2.51 | ||
| 9 |
U Plate Nut, 6mm
90344-0600A
|
$2.68 | ||
| 10 |
Seat Ass'Y, II
77200-145-00G
|
$132.37 | ||
| 11 |
Seat Bolt
77203-145-000
|
$3.91 | ||
| 12 |
Seat Lock Ass'Y
77230-145-000
|
|||
| 13 |
Seat Release Cable(Rev.1)
77212-145-000
|
$8.79 | ||
| 14 |
Reset Spring, 1*25
77213-145-000
|
$1.51 | ||
| 15 |
Ladder Bolt, 6*12.5*3.5
90111-06012-18C
|
$1.51 | ||
| 16 |
Seat Lock Ass'Y
77230-145-001
|
$10.98 | ||
| 17 |
Tool Bag
50120-101-000
|
$8.05 | ||
| 18 |
Plastic Head Light Cover
33110-145-00A
|
$12.06 | ||
| 19 |
Front Visor
64302-181-000
|
$19.77 | ||
| 20 |
Tapping Screw Truss Head Phillips, 5*12
93903-05012K
|
$0.59 |
