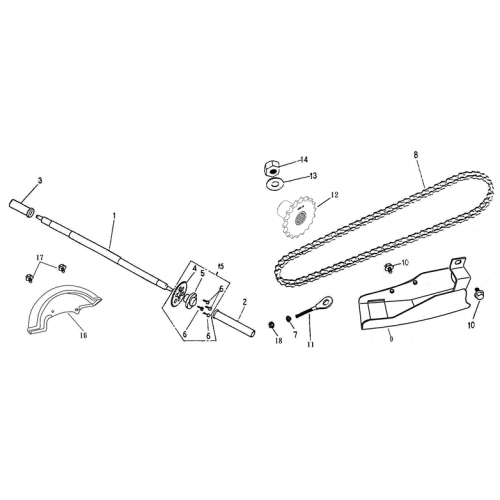

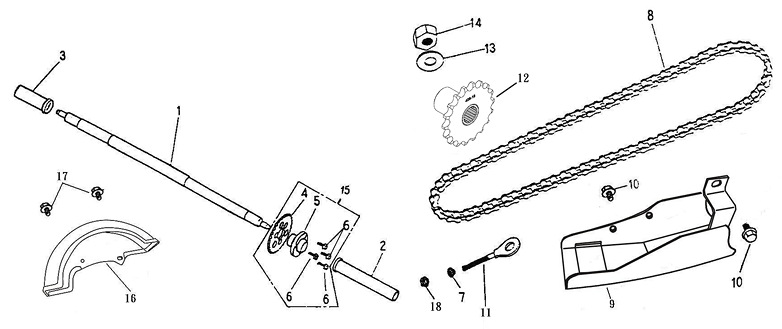

Rear Wheel Axle, Chain (Adly ATV 90II 4T (CVT))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Wheel Axle, 711mm
42301-145-000
|
$159.11 | ||
| 2 |
Right Spacer Collar
42620-145-001
|
$15.82 | ||
| 3 |
Left Spacer Collar
42622-145-001
|
$14.83 | ||
| 4 |
Rear Sprocket, 40T
41201-146-000
|
$40.45 | ||
| 5 |
Final Drive Flange(Rev.1
42610-145-000
|
$25.04 | ||
| 6 |
Hex Washer Face Bolt, 10*20
96000-10020-14B
|
$3.01 | ||
| 7 |
Hex Nut, 8mm
94001-08000B
|
$0.84 | ||
| 8 |
Drive Chain, 428*78
40530-149-000
|
$36.56 | ||
| 9 |
Chain Protect Cover
40510-145-00A
|
$36.56 | ||
| 10 |
Hex Washer Face Bolt, 8*12
96000-08012-12G
|
$1.00 | ||
| 11 |
Drive Chain Adjuster, 8MM
40543-145-001
|
$6.69 | ||
| 12 |
Drive Sprocket Ass'Y, 18T/ L=43
23801-175-000
|
|||
| 13 |
Plain Washer, 16*29*3
94101-1629030C
|
$3.35 | ||
| 14 |
Nut Nylon, 16mm
90350-16000C
|
$2.09 | ||
| 15 |
Rear Sprocket Ass'Y, 40T
42600-146-000
|
|||
| 16 |
Rear Chain Cover
40511-175-000
|
$10.98 | ||
| 17 |
Hex Flange Bolt, M6*14
96000-06014-10G
|
$1.00 | ||
| 18 |
Hex Flange Nut With Serration, 8mm
94050-08000C
|
$0.84 |
