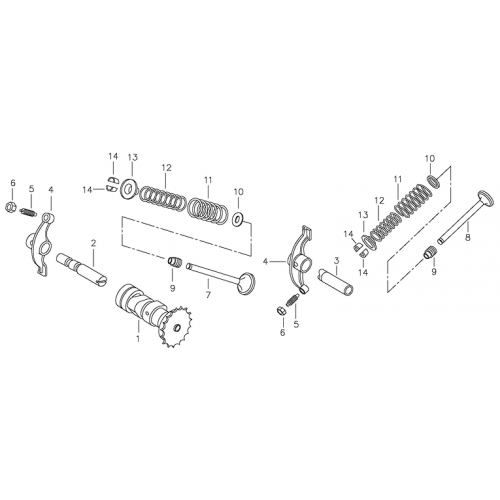

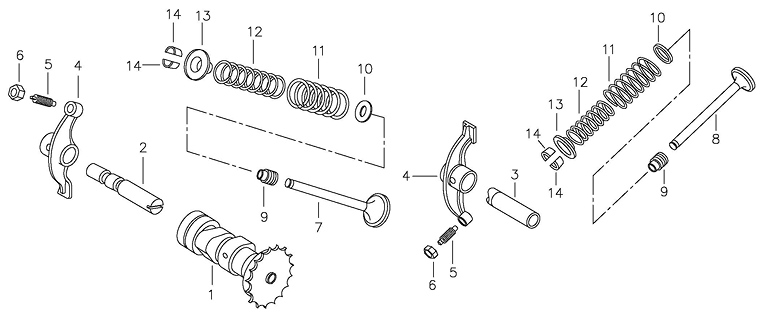

Camshaft, Valve (Adly ATV 90II 4T (CVT))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Camshaft Comp
14100-175-000
|
$80.08 | ||
| 2 |
In. Rocker Arm Shaft
14452-133-000
|
$9.15 | ||
| 3 |
Ex. Rocker Arm Shaft
14453-133-000
|
$7.32 | ||
| 4 |
Valve Rocker Arm
14431-133-000
|
$16.47 | ||
| 5 |
Valve Gap Adjusting Screw
90012-120-000
|
$5.86 | ||
| 6 |
Valve Gap Adjusting Nut
90206-120-000
|
$3.35 | ||
| 7 |
In. Valve
14711-175-000
|
$21.99 | ||
| 8 |
Ex. Valve
14721-175-000
|
$25.04 | ||
| 9 |
Valve Stem Seal
12209-120-000
|
$4.69 | ||
| 10 |
Valve Spring Seat
14775-120-000
|
$0.84 | ||
| 11 |
Valve Outer Spring
14751-133-000
|
$7.32 | ||
| 12 |
Valve Inner Spring
14761-133-000
|
$4.02 | ||
| 13 |
Valve Spring Retainer
14771-120-000
|
$4.76 | ||
| 14 |
Cotter
14781-120-000
|
$4.18 |
