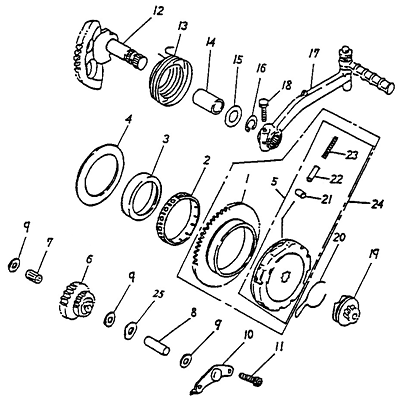

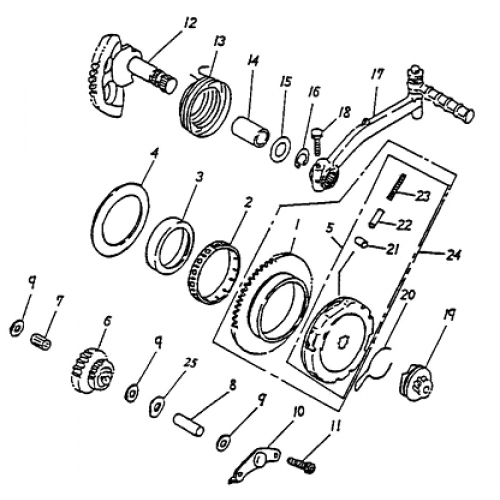

Starter (Adly ATV 50cc 2T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Starter Wheel
28220-116-000
|
$34.23 $25.67 | ||
| 2 |
Needle Bearing, 55*59*12.8*5
96200-555912
|
$26.36 $19.77 | ||
| 3 |
Boss
96202-116-000
|
$11.72 $8.79 | ||
| 4 |
Plain Washer, 56*76*0.6
94101-5676006A
|
$4.18 $3.14 | ||
| 5 |
Electric Starter Clutch Set
28410-116-001
|
$49.17 $36.87 | ||
| 6 |
Idler Gear
23422-116-000
|
$15.82 $11.86 | ||
| 7 |
Needle Bearing, 8*12*10
96200-081210
|
$11.86 $8.90 | ||
| 8 |
Shaft Idler, 8*32
96300-080320
|
$2.51 $1.88 | ||
| 9 |
Plain Washer, 8.2*18*0.8
94101-0818008A
|
$0.67 $0.50 | ||
| 10 |
Idler Gear Plate
11206-116-000
|
$9.96 $7.47 | ||
| 11 |
Hex Socket Bolt, 6*10
91000-06010B
|
$0.72 $0.54 | ||
| 12 |
Starting Shaft Ass'Y
28250-116-000
|
$24.99 $18.74 | ||
| 13 |
Starting Shaft Reset Spring
28281-110-000
|
$6.99 $5.24 | ||
| 14 |
Bushing, 15*20*30
96401-152030
|
$1.51 $1.13 | ||
| 15 |
Plain Washer, 15.2*28*1
94101-1528010K
|
$1.34 $1.00 | ||
| 16 |
External Cir Clip, STW-15
94511-1500S
|
$1.09 $0.82 | ||
| 17 |
Kick Crank Ass'Y(Rev.1)
28300-145-000
|
$46.99 $35.24 | ||
| 18 |
Hex Washer Face Bolt, 6*25
96000-06025-10
|
$1.00 $0.75 | ||
| 19 |
Hex Washer Face Bolt, 6*25
96000-06025-10K
|
$1.00 $0.75 | ||
| 20 |
Kick Pinion Ass'Y
28230-104-000
|
$32.95 $24.71 |
