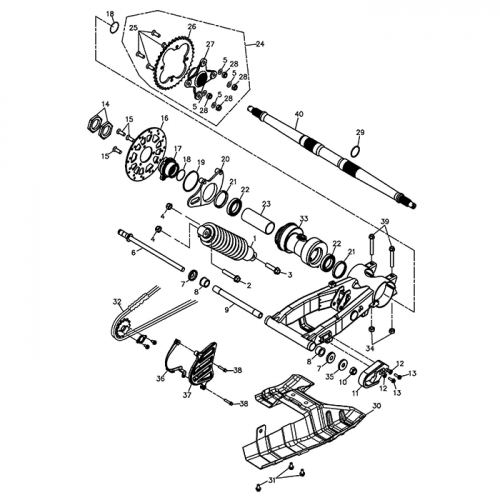

Swing Arm Sub Assembly
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
REAR CUSHION ASSY
52400-169-00D
|
|||
| 2 |
Hex Washer Face Bolt, M12*80
96000-1208017GL
|
|||
| 3 |
Hex Flange Bolt, M12*50
96000-1205017GL
|
$5.35 | ||
| 4 |
Nylon Insert Lock Nut, M12
90350-12000G
|
$2.01 | ||
| 5 |
Plain Washer, 10*22*2.5
94105-1022025G
|
$2.09 | ||
| 6 |
Swing Arm Bolt
52116-169-000
|
|||
| 7 |
Swing Arm Seal Cover
52144-145-000
|
|||
| 8 |
Bush
52103-145-000
|
$5.30 | ||
| 9 |
Collar, 14*20*230.5
52115-169-000
|
$25.04 | ||
| 10 |
Nylon Nut, M14
90350-14000G
|
$2.59 | ||
| 11 |
Shoe Slider
40533-169-000
|
$12.08 | ||
| 12 |
Space Tube
40534-901-000
|
|||
| 13 |
Hex Washer Face Bolt, 6*20
92006-06020-10G
|
$1.84 | ||
| 14 |
Hex Nut, M38*15*P1.5
94001-38150B
|
|||
| 15 |
Hex Socket Flat Head Bolt, M8*18
93901-08018GL
|
$3.35 | ||
| 16 |
Rear Brake Disc, D200
42105-169-00A
|
|||
| 17 |
Rear Brake Disc Flange Comp.
42106-169-000
|
$47.27 | ||
| 18 |
O-Ring, 40*1.3
91340-169-000
|
$1.49 | ||
| 19 |
External Cipclip, 70
94511-7000S
|
$10.62 | ||
| 20 |
Rear Caliper Stay
52120-169-000
|
$49.17 |
