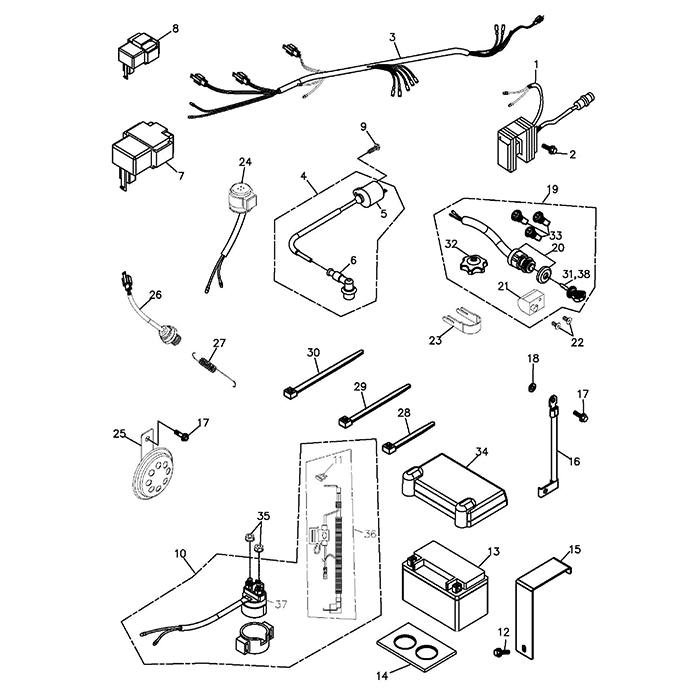

Battery | Main Harness
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Regulater Rectifier(25A), 250 (912)
31600-912-000
|
$120.17 | ||
| 2 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 3 |
WIRE HARNESS-REV.2
32100-903-00A
|
|||
| 4 |
Ignition Coil Ass'Y
30500-272-000
|
|||
| 5 |
High Tension Coil
30510-169-000
|
$44.12 | ||
| 6 |
Spark Plug Cap
30700-272-000
|
$14.61 | ||
| 7 |
C.D.I Unit, 50V/470u
30410-169-003
|
$129.99 | ||
| 8 |
Gear Change Control Unit
32203-169-000
|
|||
| 9 |
Hex Flange Bolt, M5*22
96000-05022-08G
|
$0.74 | ||
| 10 |
STARTING RELAY ASSY
38500-169-002
|
$64.33 | ||
| 11 |
Fuse, 20A
98200-912-000
|
$3.35 | ||
| 12 |
Hex Washer Face Bolt, 6*14
92006-06014-10G
|
$2.09 | ||
| 13 |
Battery YTX9-BS
31500-169-000
|
$49.12 | ||
| 14 |
Rubber Pad
30003-169-000
|
|||
| 15 |
BATTERY FIXING PLATE
31502-501-000
|
|||
| 16 |
Ground Wire
32103-169-0A1
|
$11.86 | ||
| 17 |
Hex Washer Face Bolt, 6*12
96000-06012-10G
|
$1.34 | ||
| 18 |
Ext. Toothed Lock Washer, 6*11*0.6
94115-0611006
|
$0.84 | ||
| 19 |
KEY SET
35010-225-00A
|
$100.46 | ||
| 20 |
Main Switch
35100-223-00A
|
$40.34 |
