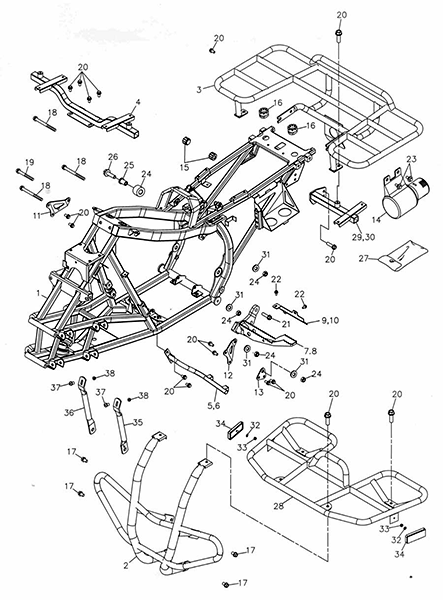

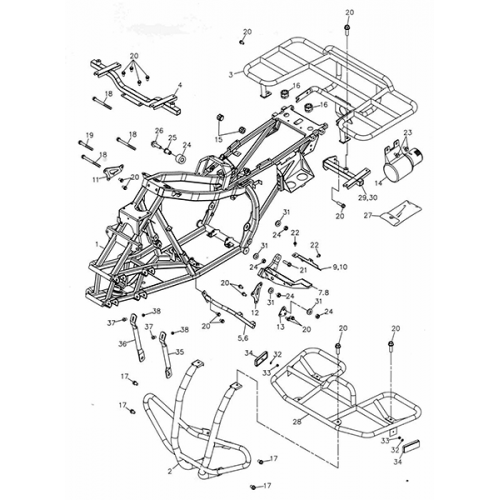

Frame Body (Adly ATV 300U)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp
50100-169-000
|
|||
| 2 |
Front Bumper
50104-169-001
|
$132.37 | ||
| 3 |
300cc Adly Rear Carrier Rack
81200-169-000
|
$85.01 | ||
| 4 |
Front Cover Fixed Pole
64309-169-000
|
|||
| 5 |
Front Cover Right Fixed Pole
64308-169-000
|
|||
| 6 |
Front Cover Left Fixed Pole
64307-169-000
|
|||
| 7 |
Right Step Bar Comp
50717-169-000
|
$45.38 | ||
| 8 |
Left Step Bar Comp
50718-169-000
|
$45.38 | ||
| 9 |
R. Fixed Pole
64314-169-000
|
|||
| 10 |
L. Fixed Pole
64315-169-000
|
|||
| 11 |
R.Engine Fixed Plate
50201-169-000
|
$5.86 | ||
| 12 |
L.Engine Fixed Plate
50202-169-000
|
$7.32 | ||
| 13 |
Engine Bracket
50206-169-000
|
$4.18 | ||
| 14 |
Tool Box
50121-169-000
|
$15.82 | ||
| 15 |
Rubber
77212-169-000
|
$4.02 | ||
| 16 |
Rubber
77211-145-000
|
$2.68 | ||
| 17 |
Hex Flange Bolt, M10*15
96000-10015-14G
|
$3.91 | ||
| 18 |
Hex Flange Bolt, M10*110
96000-10110-14G
|
$7.54 | ||
| 19 |
Hex Flange Bolt, M10*80
96000-10080-14G
|
|||
| 20 |
Hex Flange Bolt , M8*15
96000-08015-12G
|
$2.01 |
