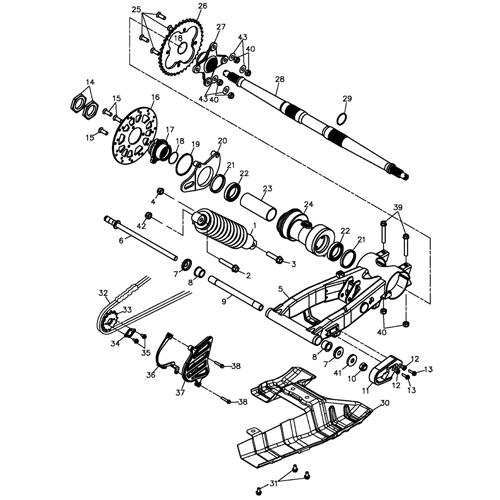

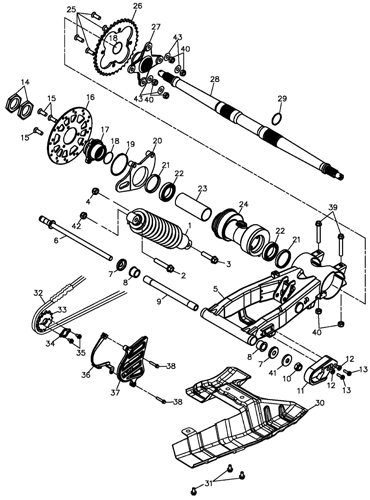

Swing Arm Sub-assembly (Adly ATV 300S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 21 |
O-Seal, 52*62*7/9
52102-169-000
|
$9.65 | ||
| 22 |
Ball Bearing(6908 LLU/2AS), 6908LLU/AS
96100-6908LLU
|
$46.19 | ||
| 23 |
Rear Axle Bush, 40*45.5*120
52113-169-000
|
$12.59 | ||
| 24 |
Rear Axle Holder
52200-169-000
|
$132.37 | ||
| 25 |
Hex Socket Flat Head Bolt, M10*27
93901-10027G
|
$3.63 | ||
| 26 |
Drive Sprocket, 38T
23802-169-00A
|
$41.35 | ||
| 27 |
Rear Sprocket Flange
42610-169-000
|
$61.60 | ||
| 28 |
Rear Wheel Axle
42301-169-000
|
$225.96 | ||
| 29 |
External Circlip
42100-169-000
|
$2.51 | ||
| 30 |
Chain Protect Cover
40510-169-001
|
$40.34 | ||
| 31 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 | ||
| 32 |
Drive Chain Ass'Y, 520*88L
40530-169-000
|
$85.01 | ||
| 33 |
Drive Sprocket Ass'Y, 13T
23801-169-000
|
$32.95 | ||
| 34 |
Drive Sprocket Fixing Plate
23811-169-000
|
$4.18 | ||
| 35 |
Hex Bolt , 6*10
92000-06010-10B
|
$0.59 | ||
| 36 |
Drive Chain Guide
40516-169-000
|
$13.84 | ||
| 37 |
Front Chain Protecter
40517-169-000
|
|||
| 38 |
Hex Washer Face Bolt, M6*25
96000-06025-10G
|
$1.00 | ||
| 39 |
Hex Flange Bolt, M10*90
96000-10090-14G
|
$6.52 | ||
| 40 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 |
