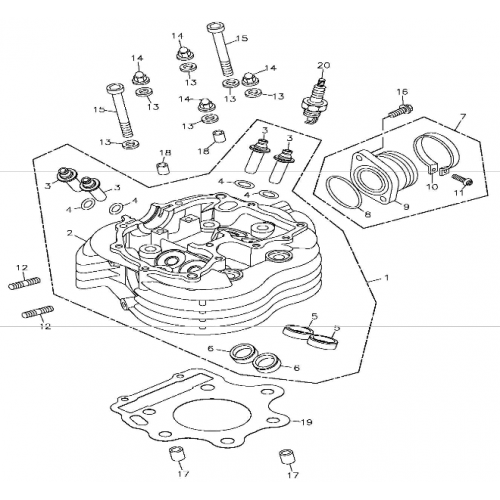

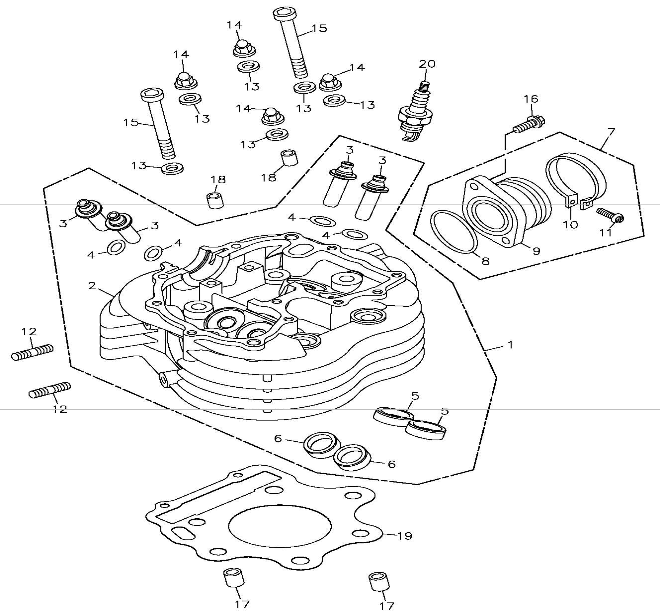

Cylinder Head (Adly ATV 300S II CrossXRoad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Head Ass'Y
12200-169-000
|
$399.78 | ||
| 2 |
Cylinder Head
12201-169-000
|
|||
| 3 |
Valve Guide
12204-169-000
|
$16.89 | ||
| 4 |
O-Ring, 10*2
91310-169-000
|
$0.67 | ||
| 5 |
In.Valve Seat
14715-169-000
|
$21.09 | ||
| 6 |
Ex.Valve Seat
14725-169-000
|
$21.09 | ||
| 7 |
Intake Manifold Ass'Y
17101-169-000
|
$38.84 | ||
| 8 |
Oil Ring, 36*3
91336-169-000
|
$3.35 | ||
| 9 |
Intake Manifold
17100-169-000
|
|||
| 10 |
Carburetor Clip
14111-169-000
|
|||
| 11 |
Pan Phillips Bolt, 5*20
93500-05020K
|
$0.59 | ||
| 12 |
Stud Bolt, 8*42
91001-08042B
|
$2.85 | ||
| 13 |
Plain Washer, 10*20*2
94101-1020020
|
$0.59 | ||
| 14 |
Hex Acorn Washer Face Nut , M10*P1.5
94031-10160
|
$2.68 | ||
| 15 |
Hex Socket Bolt , 10*105*P1.25
91000-10105B
|
|||
| 16 |
Hex Flange Bolt, 6*22
96000-06022-08B
|
$1.00 | ||
| 17 |
Dowel Pin, 12*20
94301-12200
|
$4.02 | ||
| 18 |
Dowel Pin, 8*12
94301-08120
|
$1.34 | ||
| 19 |
Cylinder Head Gasket
12251-169-000
|
|||
| 20 |
Spark Plug (R Type), DR8EA
98076-108-00A
|
$5.86 |
