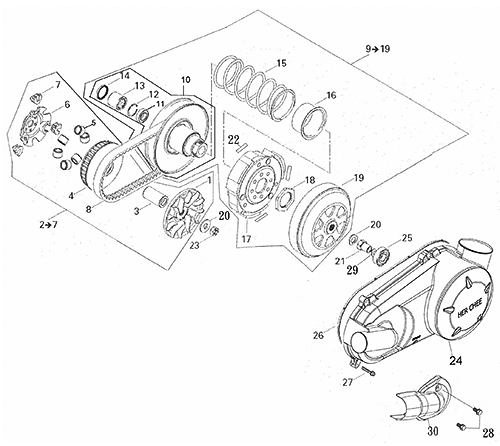

Pully System (Adly ATV 200S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Fixed Face
22102-179-000
|
$44.12 | ||
| 2 |
Cvt Drive Unit Ass'Y
22103-179-000
|
$119.00 | ||
| 3 |
Spacer, 17*26*49.5
96401-1726495
|
|||
| 4 |
Primary Drive Pulley Ass'Y
22109-179-000
|
|||
| 5 |
Roller 10 Kpl Gr., 10G Set
22121-179-000
|
$31.63 | ||
| 6 |
Plate Ramp
22131-179-000
|
$13.18 | ||
| 7 |
Sider Piece
22132-179-000
|
$4.76 | ||
| 8 |
Cvt Belt
23100-179-000
|
$88.19 | ||
| 9 |
Cvt Drive Unit Ass'Y
22000-179-000
|
$346.30 | ||
| 10 |
Cvt Drive Unit
23200-179-000
|
|||
| 11 |
Ball Bearing, 6903LLU C3
96100-6903LLU
|
|||
| 12 |
Retaining Ring 30*1.5, RTW-30
94512-3000R
|
|||
| 13 |
Needle Bearing, 23*32*30
96200-233230
|
|||
| 14 |
Oil Seal, 25*32*4
96500-25324
|
$5.13 | ||
| 15 |
Compression Spring
23233-179-000
|
|||
| 16 |
Spring Seat
23237-179-000
|
|||
| 17 |
Clutch Ass'Y
20001-179-000
|
$134.99 | ||
| 18 |
Hex Nut, 36mm
90202-179-000
|
|||
| 19 |
Clutch Drum
22100-179-000
|
$85.01 | ||
| 20 |
Plain Washer, 12*29*1.5
94105-1229015A
|
